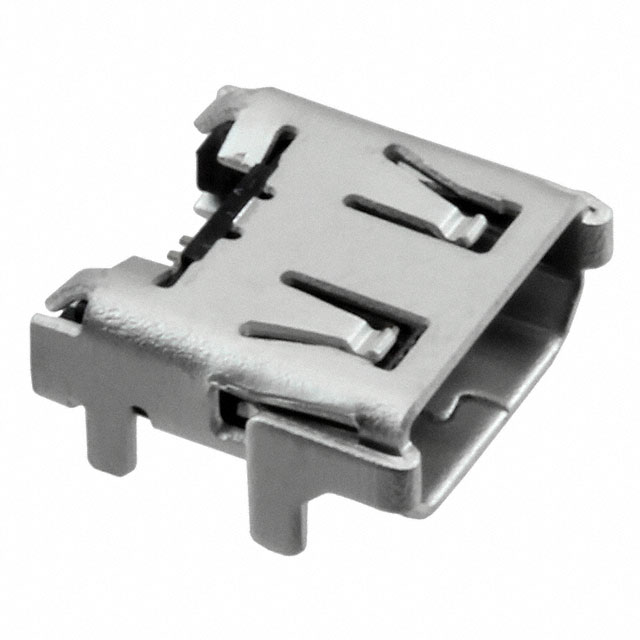

DC3RX19JA3R1700
ActiveJAE Electronics
CONN RCP MICRO HDMI 19POS SMD RA
Deep-Dive with AI
Search across all available documentation for this part.
DC3RX19JA3R1700
ActiveJAE Electronics
CONN RCP MICRO HDMI 19POS SMD RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DC3RX19JA3R1700 |
|---|---|
| Connector Type | HDMI - Micro |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.3 A |
| Features | Pick and Place |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 5000 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts [custom] | 19 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.45 | |
| 10 | $ 1.26 | |||
| 25 | $ 1.21 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.13 | |||
| 250 | $ 1.02 | |||
| 500 | $ 0.94 | |||
| Digi-Reel® | 1 | $ 1.45 | ||
| 10 | $ 1.26 | |||
| 25 | $ 1.21 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.13 | |||
| 250 | $ 1.02 | |||
| 500 | $ 0.94 | |||
| Tape & Reel (TR) | 1700 | $ 0.78 | ||
| 3400 | $ 0.75 | |||
| 5100 | $ 0.71 | |||
| 8500 | $ 0.70 | |||
Description
General part information
DC3RX19J Series
HDMI - Micro Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
Documents
Technical documentation and resources
No documents available
