P3140030M4AY2

Active

Rosenberger

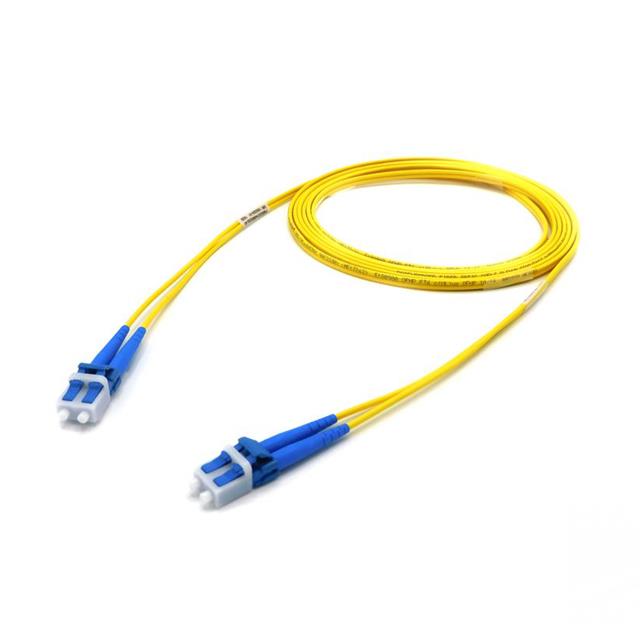

PATCHCORD,LCD-LCD,2G657A2,2.0MM

Search across all available documentation for this part.

Active

Rosenberger

PATCHCORD,LCD-LCD,2G657A2,2.0MM

Technical Specifications

Parameters and characteristics for this part

Specification	P3140030M4AY2

1st Connector	LC Duplex
2nd Connector	LC Duplex
Bend Radius	30 mm
Cable Diameter [diameter]	2 mm
Cable Diameter [diameter]	0.08 in
Cable Type	Twin Zip
Color - Cable	Yellow
Color - Connectors	Blue
Features	Zipcord, Plenum
Fiber Type	9/125
Insertion Loss	0.2 dB
Length - Overall [x]	3 m
Length - Overall [x]	9.8 ft
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Type	Singlemode, Duplex

Part	Color - Cable	Features	1st Connector	2nd Connector	Cable Diameter [diameter]	Cable Diameter [diameter]	Fiber Type	Type	Color - Connectors	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Bend Radius	Cable Type	Length - Overall [x]	Length - Overall [x]	Insertion Loss
Rosenberger P3140030M4AY2	Yellow	Plenum Zipcord	LC Duplex	LC Duplex	2 mm	0.08 in	9/125	Duplex Singlemode	Blue	-10 °C	158 °F	30 mm	Twin Zip	3 m	9.8 ft	0.2 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Fiber Optic LC Duplex To LC Duplex 9/125 9.8' (3.0m)
