CD421690B

Obsolete

Powerex Inc.

SCR MOD ISO DUAL 1600V 90A

Search across all available documentation for this part.

Obsolete

Powerex Inc.

SCR MOD ISO DUAL 1600V 90A

Technical Specifications

Parameters and characteristics for this part

Specification	CD421690B

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	2100 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	2000 A
Current - On State (It (AV)) (Max)	95 A
Current - On State (It (RMS)) (Max) [Max]	150 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	POW-R-BLOK™ Module
Structure	Series Connection - SCR/Diode
Voltage - Off State	1.6 kV

Part	Structure	Current - On State (It (RMS)) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - On State (It (AV)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm)	Number of SCRs, Diodes	Current - Gate Trigger (Igt) (Max) [Max] [x]	Voltage - Off State	Current - Hold (Ih) (Max) [Max]	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Mounting Type	Current - On State (It (AV)) (Max)	Current - Gate Trigger (Igt) (Max) [Max]
Powerex Inc. CD421690C	Series Connection - SCR/Diode	141 A	-40 °C	125 ¯C	90 A	2.5 V	2000 A	1	100 mA	1.6 kV	100 mA	Module
Powerex Inc. CD421690B	Series Connection - SCR/Diode	150 A	-40 °C	125 ¯C				1		1.6 kV	250 mA	POW-R-BLOK™ Module	2000 A	2100 A	Chassis Mount	95 A	150 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

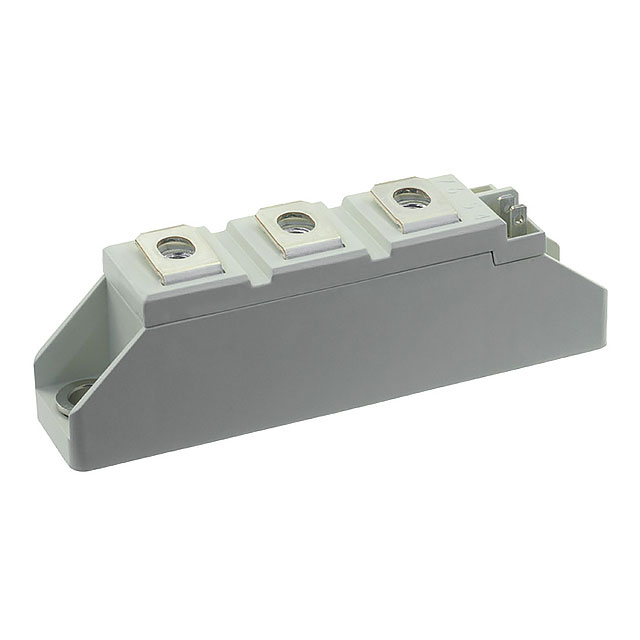

SCR Module 1.6 kV 150 A Series Connection - SCR/Diode Chassis Mount POW-R-BLOK™ Module
