TS2C7F26C - TS2C7F26C

TS2C7F26C

Active
Switchcraft Inc.

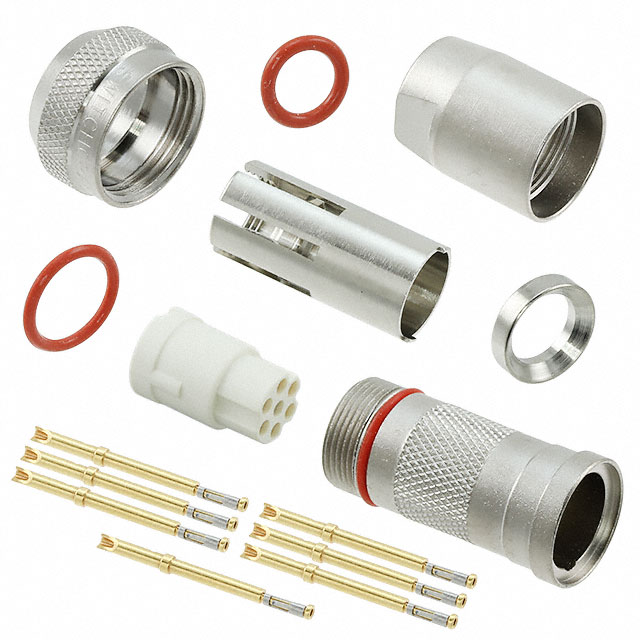

CONN CIRCULAR SKT 7 POS CRIMP ST CABLE MOUNT 7 TERMINAL 1 PORT BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
TS2C7F26C - TS2C7F26C

TS2C7F26C

Active
Switchcraft Inc.

CONN CIRCULAR SKT 7 POS CRIMP ST CABLE MOUNT 7 TERMINAL 1 PORT BULK

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationTS2C7F26C
ApplicationsAudio, Testing Equipment & Measurement, Agriculture, Medical, General
Backshell Material, PlatingCopper Alloy, Nickel
Cable Opening [Max] [diameter]5.49 mm
Cable Opening [Max] [diameter]0.216 in
Cable Opening [Min] [diameter]4.57 mm
Cable Opening [Min] [diameter]0.18 in
ColorSilver
Connector TypeFemale Sockets, Plug
Contact Finish - MatingGold
Contact MaterialCopper Alloy
FeaturesCoupling Nut, Backshell
Ingress ProtectionIP68, IP66, IP67
Insert MaterialLiquid Crystal Polymer (LCP)
Mounting TypeFree Hanging (In-Line)
Number of Positions7
Operating Temperature [Max]135 °C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialMetal
Shell FinishElectroless Nickel
Shell MaterialCopper Alloy
ShieldingShielded
TerminationCrimp, Solder Cup
Voltage Rating30 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 6.51
DigikeyBulk 1$ 39.41
10$ 30.50
25$ 27.68
50$ 25.77
100$ 25.05

Description

General part information

TS2C7F Series

7 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup
