5T9310NLGI

Obsolete

Renesas Electronics Corporation

IC CLK BUFFER 1:10 1GHZ 40VFQFPN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5T9310NLGI

Obsolete

Renesas Electronics Corporation

IC CLK BUFFER 1:10 1GHZ 40VFQFPN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5T9310NLGI

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Frequency - Max [Max]	1 GHz
Input	CML, LVPECL, LVDS, HSTL, LVEPECL, eHSTL, LVTTL
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVDS

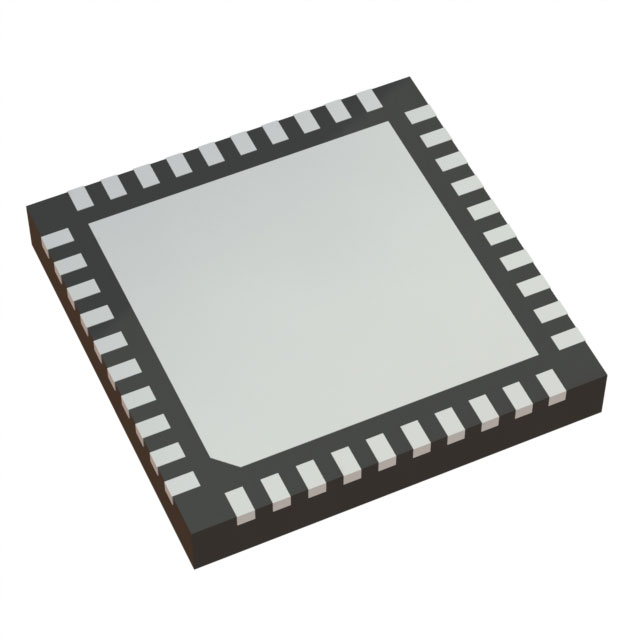

Package / Case	40-VFQFN Exposed Pad
Ratio - Input:Output [custom]	1:10
Supplier Device Package	40-VFQFPN (6x6)
Type	Fanout Buffer (Distribution), Multiplexer
Voltage - Supply [Max]	2.7 V
Voltage - Supply [Min]	2.3 V

5T9310 Series

1-to-10 LVDS Fanout Buffer

Part	Number of Circuits	Package / Case	Output	Input	Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output [custom]	Frequency - Max [Max]	Differential - Input:Output [custom]	Differential - Input:Output [custom]
Renesas Electronics Corporation 5T9310NLGI8	1	40-VFQFN Exposed Pad	LVDS	CML eHSTL HSTL LVDS LVEPECL LVPECL LVTTL	Fanout Buffer (Distribution) Multiplexer	40-VFQFPN (6x6)	2.7 V	2.3 V	Surface Mount	85 °C	-40 °C	1:10	1 GHz
Renesas Electronics Corporation 5T9310NLGI	1	40-VFQFN Exposed Pad	LVDS	CML eHSTL HSTL LVDS LVEPECL LVPECL LVTTL	Fanout Buffer (Distribution) Multiplexer	40-VFQFPN (6x6)	2.7 V	2.3 V	Surface Mount	85 °C	-40 °C	1:10	1 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

5T9310 Series

The 5T9310 is a low skew, 1-to-10 differential LVDS clock fanout buffer. The device has two selectable inputs. The inputs accept LVDS, HSTL, CML, LVPECL and single-ended signals such as 3.3V/2.5V LVCMOS/LVTTL. The 5T9310 outputs can be asynchronously enabled/disabled. When disabled, the outputs will drive to the value selected by the GL pin. Multiple power and grounds reduce noise.
