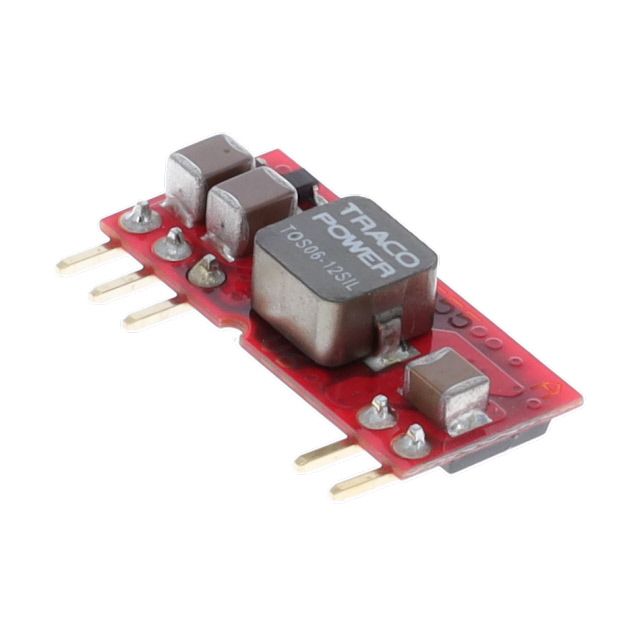

TOS 06-12SIL
ActiveTraco Power
DC DC CONVERTER 0.75-5V 30W
Deep-Dive with AI
Search across all available documentation for this part.
TOS 06-12SIL
ActiveTraco Power
DC DC CONVERTER 0.75-5V 30W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TOS 06-12SIL |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 89 % |
| Features | SCP, OCP, OTP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-SIP Module |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 0.9 " |
| Size / Dimension [x] | 22.9 mm |
| Size / Dimension [y] | 6 mm |
| Size / Dimension [y] | 0.23 in |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 8.3 V |
| Voltage - Output 1 [Max] | 5 V |
| Voltage - Output 1 [Min] | 0.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 24.50 | |
| 10 | $ 21.23 | |||
| 25 | $ 20.53 | |||
| 40 | $ 20.18 | |||
| 80 | $ 19.67 | |||
| 230 | $ 18.92 | |||
| 440 | $ 18.48 | |||
Description
General part information
TOS 06 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 5V 6A 8.3V - 14V Input
