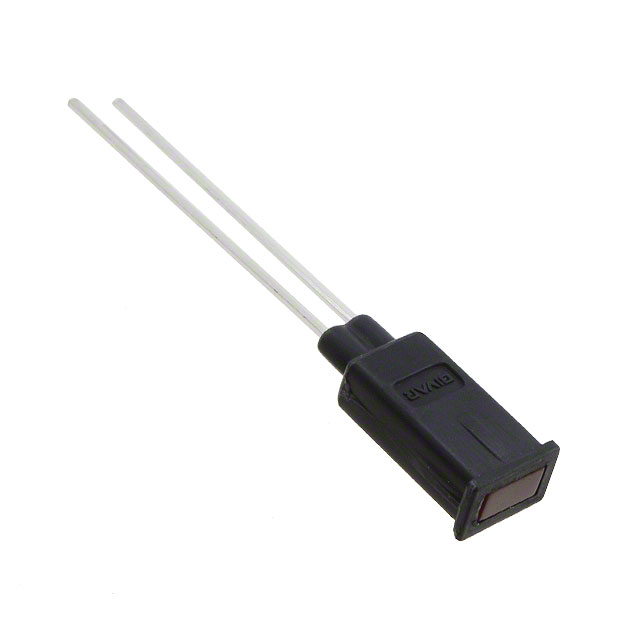

PMR4RD

Active

Bivar Inc.

STANDARD PANEL MOUNT INDICATORS, 2 LEADED, 2MM X 4MM RECTANGULAR, RED LED W\ DIFFUSED LENS / BAG

Search across all available documentation for this part.

Active

Bivar Inc.

STANDARD PANEL MOUNT INDICATORS, 2 LEADED, 2MM X 4MM RECTANGULAR, RED LED W\ DIFFUSED LENS / BAG

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Viewing Angle	Lens Style	Current	Wavelength - Peak	Panel Cutout Shape	Lens Size [x]	Lens Size [y]	Lens Transparency	Voltage	Lamp Color	Millicandela Rating	Type
Bivar Inc. PMR4RD	PC Pin	5.59 mm	0.14 "	3.56 mm	0.22 "	120 °	Rectangle with Flat Top	80 mA	700 nm	Rectangle	2.1 mm	4 mm	Diffused	2.1 V	Red	0.4 mcd	LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red Diffused 120° 2.1V 80mA PC Pin
