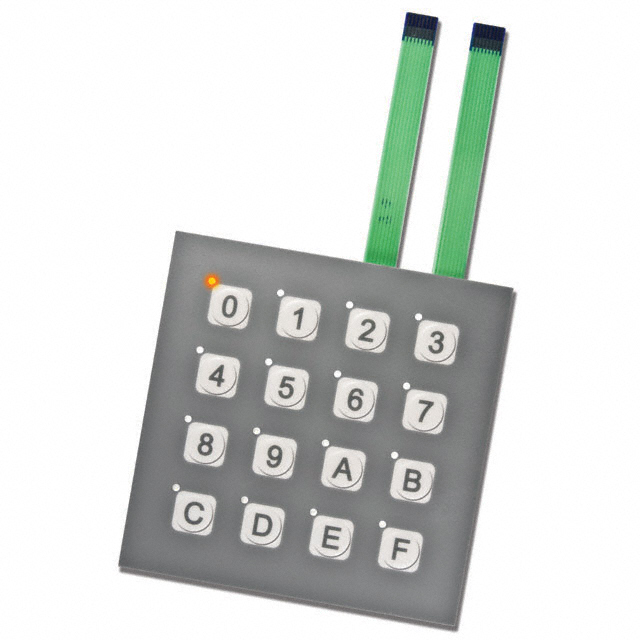

FMBP16BF

Active

NKK Switches

SWITCH KEYPAD 16KEY 0.02A 24V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH KEYPAD 16KEY 0.02A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	FMBP16BF

Contact Rating @ Voltage	0.02 A, 24 VDC
Illumination	Illuminated - Amber
Illumination Voltage (Nominal)	2.1 VDC
Key Color	White
Key Type	Polyester Overlay
Legend	0 ~ 9, A ~ F
Legend Type	Fixed
Matrix (Columns x Rows) [custom]	4
Matrix (Columns x Rows) [custom]	4
Mounting Type	Panel Mount, Front
Number of Keys	16
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-15 °C
Operational Life	1000000 Cycles
Output Type	1.81 mOhm
Switch Type	Membrane (Snap Dome)
Termination Style	Cable with Connector

Part	Legend	Output Type	Legend Type	Switch Type	Termination Style	Key Color	Number of Keys	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Voltage (Nominal)	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Key Type	Operational Life	Illumination	Contact Rating @ Voltage
NKK Switches FMBP16BF	0 ~ 9 A ~ F	1.81 mOhm	Fixed	Membrane (Snap Dome)	Cable with Connector	White	16	Panel Mount Front	-15 °C	50 °C	2.1 VDC	4	4	Polyester Overlay	1000000 Cycles	Illuminated - Amber	0.02 A 24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keypad Switch 16 Polyester Overlay Keys Membrane (Snap Dome) Contacts Matrix Output Illuminated - Amber 0.02A @ 24VDC
