DC3332003S

Active

SAB North America

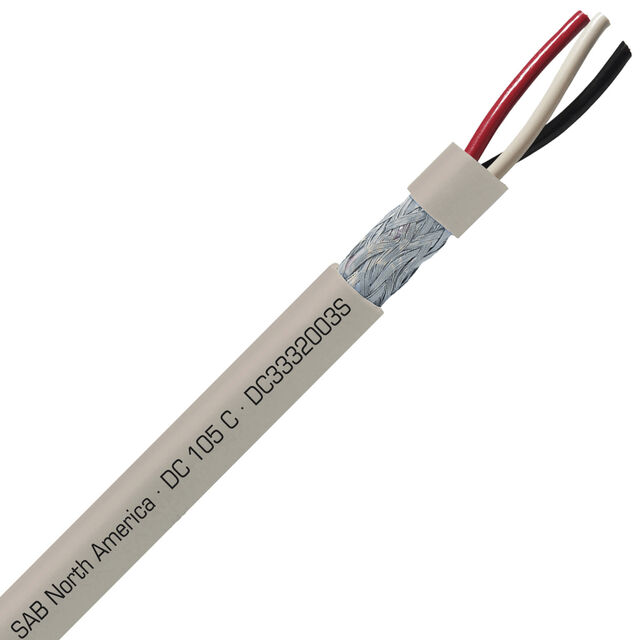

CABLE 3COND 20AWG GRY SHLD 1=1FT

Search across all available documentation for this part.

Active

SAB North America

CABLE 3COND 20AWG GRY SHLD 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3332003S

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.82 mm
Jacket (Insulation) Diameter [diameter]	0.229 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Coverage	100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Wire Gauge	20 AWG

Part	Conductor Insulation	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Conductor Material	Length	Jacket (Insulation) Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Jacket Color	Features	Number of Conductors	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]
SAB North America DC3332003S	Poly-Vinyl Chloride (PVC)	20 AWG	5.82 mm	0.229 in	Aluminum Copper Tinned	Copper Tinned	Enter Number of Feet in Order Quantity	Poly-Vinyl Chloride (PVC)	Multi-Conductor	19	32 AWG	100 %	Gray	Drain Wire	3	Braid Foil	-25 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Gray 20 AWG Foil, Braid Enter Number of Feet in Order Quantity
