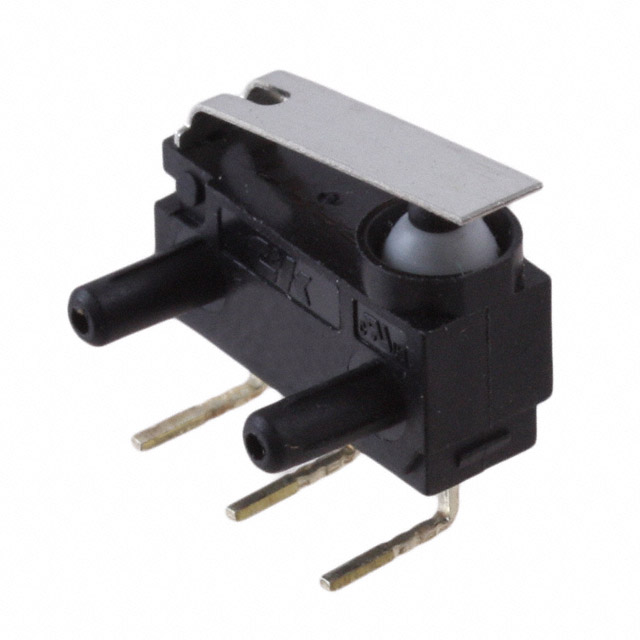

ZMSL03130T10LLC

Obsolete

Littelfuse/Commercial Vehicle Products

SWITCH SNAP ACTION SPDT 3A 125V

Search across all available documentation for this part.

Obsolete

Littelfuse/Commercial Vehicle Products

SWITCH SNAP ACTION SPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ZMSL03130T10LLC

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	3 A
Differential Travel	0.5 mm
Differential Travel	0.02 in
Electrical Life	100000 Cycles
Features	Support Posts
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	500000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	195 gf
Operating Position	0.44 in
Operating Position	11.2 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	1.35 mm
Overtravel	0.053 in
Pretravel	0.152 in
Pretravel	3.85 mm
Release Force	55 gf
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	12 V

Part	Switch Function	Termination Style	Mounting Type	Voltage Rating - DC	Current Rating (Amps)	Differential Travel	Differential Travel	Actuator Type	Pretravel	Pretravel	Mechanical Life	Voltage Rating - AC	Overtravel	Overtravel	Operating Temperature [Max]	Operating Temperature [Min]	Release Force	Ingress Protection	Electrical Life	Operating Position	Operating Position	Circuit	Operating Position	Operating Force	Features
Littelfuse/Commercial Vehicle Products ZMSL03130T11PSC	On-Mom	PC Pin	Through Hole	12 V	3 A	0.03 in	0.76 mm	Lever Simulated Roller	0.188 in	4.8 mm	500000 Cycles	125 V	1.6 mm	0.062 in	85 °C	-40 °C	45 gf	IP65 - Dust Tight Water Resistant	100000 Cycles	0.539 in	13.7 mm	SPDT
Littelfuse/Commercial Vehicle Products ZMSL03130P00PSC	On-Mom	PC Pin	Through Hole	12 V	3 A	0.012 "	0.3 mm	Round (Pin Plunger)	0.03 in	0.8 mm	500000 Cycles	125 V	0.79 mm	0.031 in	85 °C	-40 °C	13 gf	IP65 - Dust Tight Water Resistant	100000 Cycles		10.55 mm	SPDT	0.415 in	130 gf
Littelfuse/Commercial Vehicle Products ZMSL03130P00RRC	On-Mom	PC Pin	Through Hole Right Angle	12 V	3 A	0.012 "	0.3 mm	Round (Pin Plunger)	0.03 in	0.8 mm	500000 Cycles	125 V	0.79 mm	0.031 in	85 °C	-40 °C	13 gf	IP65 - Dust Tight Water Resistant	100000 Cycles		10.55 mm	SPDT	0.415 in	130 gf	Support Posts
Littelfuse/Commercial Vehicle Products ZMSL03130T10LLC	On-Mom	PC Pin	Through Hole Right Angle	12 V	3 A	0.02 in	0.5 mm	Lever Straight	0.152 in	3.85 mm	500000 Cycles	125 V	1.35 mm	0.053 in	85 °C	-40 °C	55 gf	IP65 - Dust Tight Water Resistant	100000 Cycles	0.44 in	11.2 mm	SPDT		195 gf	Support Posts
