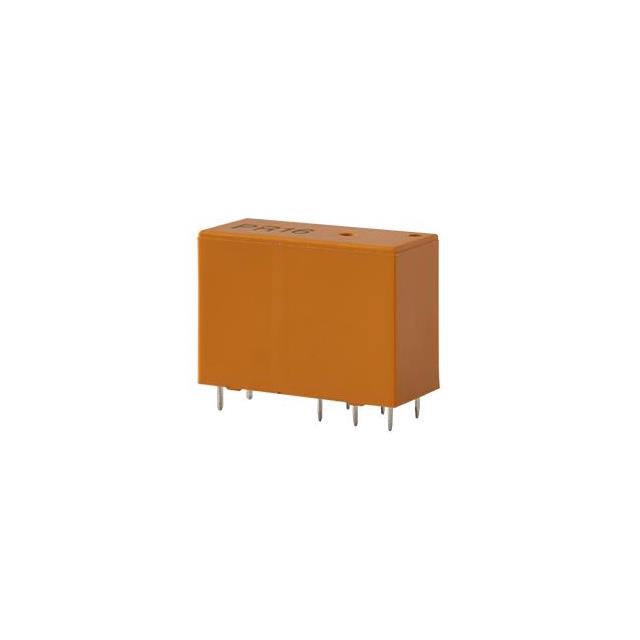

PR16-24V-540-2C
ActiveCUI Devices
RELAY GEN PURPOSE DPDT 5A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR16-24V-540-2C
ActiveCUI Devices
RELAY GEN PURPOSE DPDT 5A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR16-24V-540-2C |
|---|---|
| Coil Current | 22.5 mA |
| Coil Resistance | 1.067 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 5 A |
| Load - Max Switching | 1250 VA, 150 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Relay Type | General Purpose |
| Release Time | 8 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.84 | |
| 10 | $ 1.73 | |||
| 25 | $ 1.53 | |||
| 50 | $ 1.46 | |||
| 100 | $ 1.38 | |||
| 250 | $ 1.35 | |||
Description
General part information
PR16-24V Series
General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
