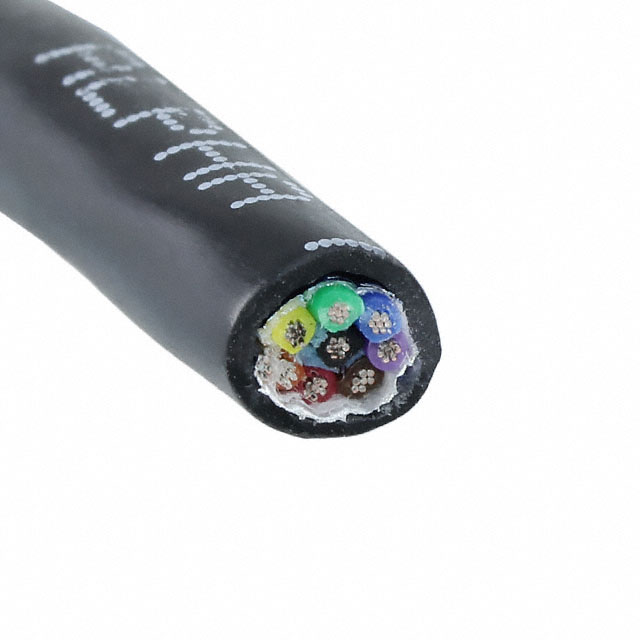

25098 BK199

Active

ALPHA WIRE

CABLE 8COND 24AWG BLK SHLD FEET

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 8COND 24AWG BLK SHLD FEET

Technical Specifications

Parameters and characteristics for this part

Specification	25098 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.219 in
Jacket (Insulation) Diameter [diameter]	5.56 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Number of Conductors	8
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Spool Size	1000 ft
Spool Size	304.8 m
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Conductors	Shield Coverage	Voltage	Cable Type	Spool Size	Spool Size	Shield Material	Wire Gauge	Conductor Insulation	Ratings	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length [x]	Length [x]
ALPHA WIRE 25098 BK199	Polyurethane (PU)	-30 ░C	90 °C	Biological Compatibility Drain Wire Rip Cord	8	100 %	300 V	Multi-Conductor	1000 ft	304.8 m	Aluminum	24 AWG	Poly-Vinyl Chloride (PVC)	ISO 10993 UL Style 20668	Copper Tinned	32 AWG	7	Black	Foil	0.219 in	5.56 mm	Enter Number of Feet in Order Quantity
ALPHA WIRE 25098 BK005	Polyurethane (PU)	-30 ░C	90 °C	Biological Compatibility Drain Wire Rip Cord	8	100 %	300 V	Multi-Conductor			Aluminum	24 AWG	Poly-Vinyl Chloride (PVC)	ISO 10993 UL Style 20668	Copper Tinned	32 AWG	7	Black	Foil	0.219 in	5.56 mm		30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Conductor Multi-Conductor Cable Black 24 AWG Foil Enter Number of Feet in Order Quantity
