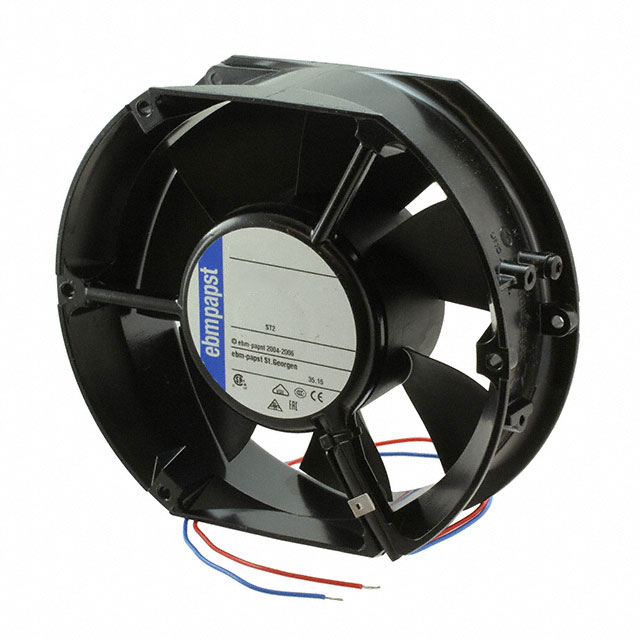

6448U

Active

ebm-papst Inc.

DC FAN AXIAL BALL BEARING 48V 28V TO 60V 241.3CFM 57DB 171.5 X 150 X 50.8MM

Search across all available documentation for this part.

Active

ebm-papst Inc.

DC FAN AXIAL BALL BEARING 48V 28V TO 60V 241.3CFM 57DB 171.5 X 150 X 50.8MM

Technical Specifications

Parameters and characteristics for this part

Specification	6448U

Air Flow	241.3 CFM
Air Flow	6.76 mł/min
Approval Agency	UL
Bearing Type	Ball
Fan Type	Tubeaxial
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Aluminum
Noise	57 dB
Operating Temperature [Max]	67 °C
Operating Temperature [Max]	152.6 °F
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
Power (Watts)	17 W
RPM	3400 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	171.5 mm
Size / Dimension [z]	150.4 mm
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	28 V
Weight	861.8 g
Weight	1.9 lbs
Width [y]	2 "

Part	RPM	Noise	Fan Type	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Voltage - Rated [custom]	Bearing Type	Material - Blade	Material - Frame	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Power (Watts)	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]	Termination	Ingress Protection	Width [y]	Approval Agency	Lifetime @ Temp.	Features
ebm-papst Inc. 6448U	3400 RPM	57 dB	Tubeaxial	241.3 CFM	6.76 mł/min	-20 C	-20 °C	67 °C	152.6 °F	48 VDC	Ball	Fiberglass Reinforced Nylon Polyamide (PA)	Aluminum	150.4 mm	171.5 mm	Rectangular/Rounded	17 W	861.8 g	1.9 lbs	60 V	28 V	2 Wire Leads	IP68 - Dust Tight Waterproof	2 "	UL
ebm-papst Inc. 6448H	4000 RPM	63 dB	Tubeaxial	282.5 CFM	7.91 mł/min	-20 C	-20 °C	55 °C	55 °C	48 VDC	Ball	Fiberglass Reinforced Nylon Polyamide (PA)	Aluminum	150 mm	172 mm	Rectangular/Rounded	26 W	771.1 g	1.7 lbs	60 V	28 V	2 Wire Leads		2 "		70000 Hrs
ebm-papst Inc. 6448/17U-365	3400 RPM	57 dB	Tubeaxial	241 CFM	6.75 mł/min					48 VDC	Ball	Fiberglass Reinforced Nylon Polyamide (PA)	Aluminum	150 mm	171.5 mm		17 W			60 V	28 V			2 "			Alarm Sensor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Rectangular/Rounded - 171.5mm L x 150.4mm H Ball 241.3 CFM (6.76m³/min) 2 Wire Leads
