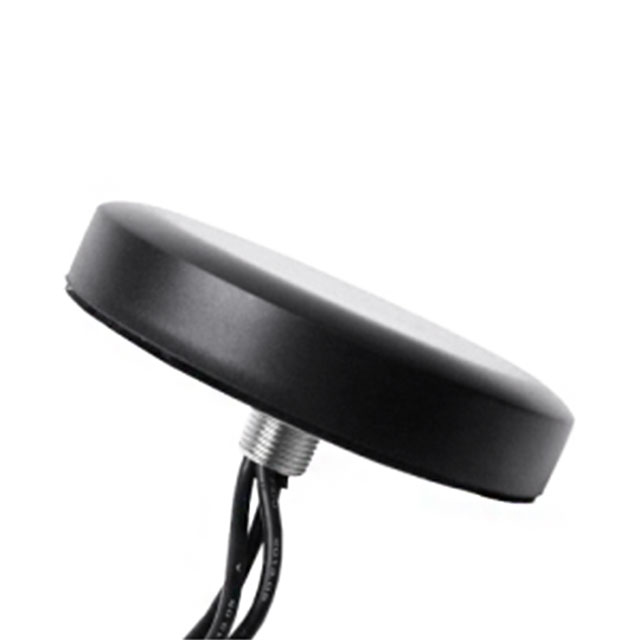

TANGO22A/3M/SMAM/SMAM/SMAM/S/S/26

Active

Siretta Ltd

GPS/GLONASS PUCK 28DBI GAIN ANTE

Search across all available documentation for this part.

Active

Siretta Ltd

GPS/GLONASS PUCK 28DBI GAIN ANTE

Technical Specifications

Parameters and characteristics for this part

Specification	TANGO22A/3M/SMAM/SMAM/SMAM/S/S/26

Applications	WLAN, Wi-Fi, LTE, GLONASS, ISM, GPS, Bluetooth, Zigbee™, GSM, Galileo, UMTS
Features	Cable
Features	3 m
Frequency (Center/Band)	1.58 GHz, 829 MHz, 2.205 GHz, 2.44 GHz
Frequency Group	Wide Band
Frequency Range [Max]	2.7 GHz, 2.4835 GHz, 960 MHz, 1.602 GHz
Frequency Range [Min]	2.4 GHz, 1.71 GHz, 1.561 GHz, 698 MHz
Gain	2 dBic, 3 dBi, 5 dBi
Height (Max) [Max] [z]	16 mm
Height (Max) [Max] [z]	0.63 in
Mounting Type	Screw Mount
Number of Bands	4
RF Family/Standard	802.15.4, Bluetooth, General ISM, Navigation, Cellular, WiFi
Termination	SMA Male (3)
VSWR	2, 1.5, 3

Part	Frequency Group	Frequency (Center/Band)	Height (Max) [Max]	Height (Max) [Max]	VSWR [Max]	VSWR [Min]	RF Family/Standard	Applications	Number of Bands	Gain	Termination	VSWR	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Features	Features	Frequency Range [Max]	Frequency Range [Min]	Mounting Type
Siretta Ltd TANGO22/3M/SMAM/SMAM/SMAM/26	Wide Band	1.575 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 850 MHz 900 MHz	15 mm	0.591 in	2	1.5	Cellular Navigation WiFi	GPRS GPS GSM WLAN	7	28 dBi
Siretta Ltd TANGO22A/3M/SMAM/SMAM/SMAM/S/S/26	Wide Band	1.58 GHz 2.205 GHz 2.44 GHz 829 MHz					802.15.4 Bluetooth Cellular General ISM Navigation WiFi	Bluetooth Galileo GLONASS GPS GSM ISM LTE UMTS Wi-Fi WLAN Zigbee™	4	2 dBic 3 dBi 5 dBi	SMA Male (3)	1.5 2 3	16 mm	0.63 in	Cable	3 m	1.602 GHz 2.4835 GHz 2.7 GHz 960 MHz	1.561 GHz 1.71 GHz 2.4 GHz 698 MHz	Screw Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Bluetooth, Galileo, GLONASS, GPS, GSM, ISM, LTE, UMTS, Wi-Fi, WLAN, Zigbee™ Puck SMA Male (3) Screw Mount
