19396060545

Active

HARTING Technology Group

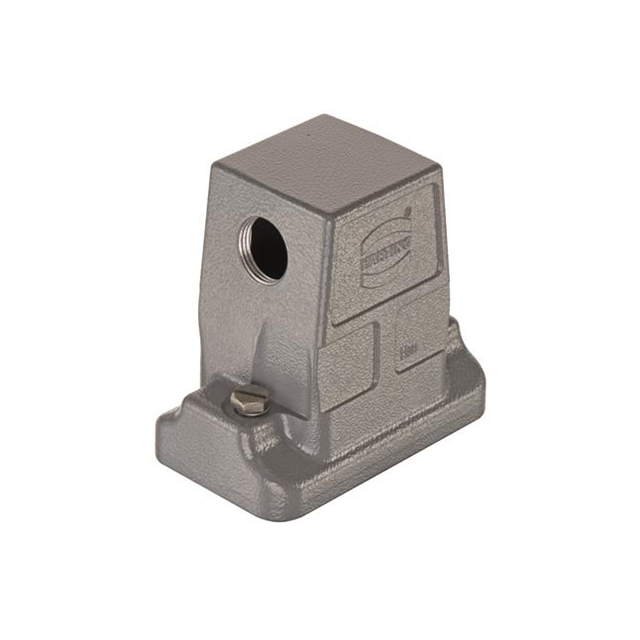

HAN 6 HP DIRECT B HOOD, SIDE ENTRY, M20

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 6 HP DIRECT B HOOD, SIDE ENTRY, M20

Technical Specifications

Parameters and characteristics for this part

Specification	19396060545

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	3.661 in
Size / Dimension [x]	93 mm
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	3.583 in
Size / Dimension [z]	91 mm
Style	Side Entry
Thread Size	M20

Part	Thread Size	Housing Material	Size	Connector Type	Housing Color	Ingress Protection	Housing Finish	Style	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Lock Location
HARTING Technology Group 19396060545	M20	Aluminum Die Cast	6B	Hood	Gray	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Powder Coated	Side Entry	125 °C	-40 °C	3.661 in	93 mm	2.244 "	57 mm	3.583 in	91 mm	Screw Locks on Hood
HARTING Technology Group 19396060546	M25	Aluminum Die Cast	6B	Hood	Gray	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Powder Coated	Side Entry	125 °C	-40 °C	3.661 in	93 mm	2.244 "	57 mm	3.583 in	91 mm	Screw Locks on Hood

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M20 6B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
