19K203-3X1L5

Obsolete

Rosenberger

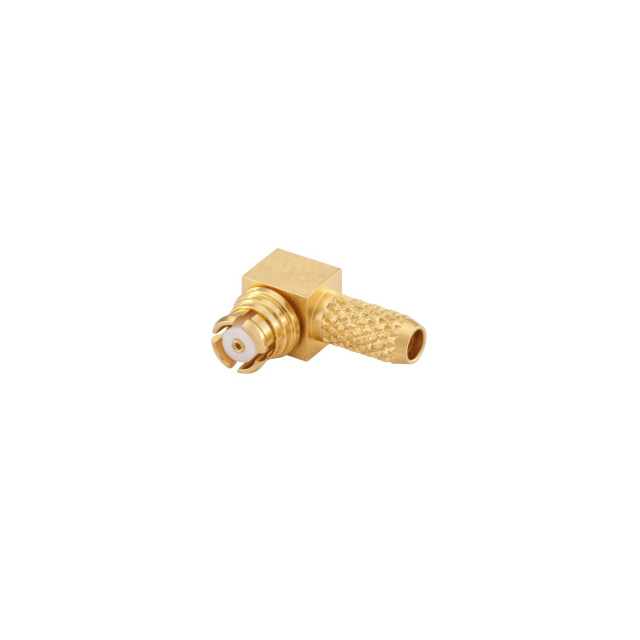

SMP RIGHT ANGLE JACK

Search across all available documentation for this part.

Obsolete

Rosenberger

SMP RIGHT ANGLE JACK

Technical Specifications

Parameters and characteristics for this part

Specification	19K203-3X1L5

Body Finish	Gold
Body Material	Brass
Cable Group	RG-178B
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Center Contact Material	Body Finish	Number of Ports	Frequency - Max [Max]	Fastening Type	Mounting Type	Connector Type	Body Material	Dielectric Material	Voltage Rating	Mating Cycles	Center Contact Plating	Cable Group	Contact Termination	Shield Termination	Impedance	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]
Rosenberger 19K203-3X1L5	Beryllium Copper	Gold	1	26.5 GHz	Snap-On	Free Hanging (In-Line) Right Angle	Female Socket Jack	Brass	Polytetrafluoroethylene (PTFE)	335 V	1000	Gold	RG-178B	Solder	Crimp	50 Ohms	Gold	155 °C	-65 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder

Technical documentation and resources

No documents available
