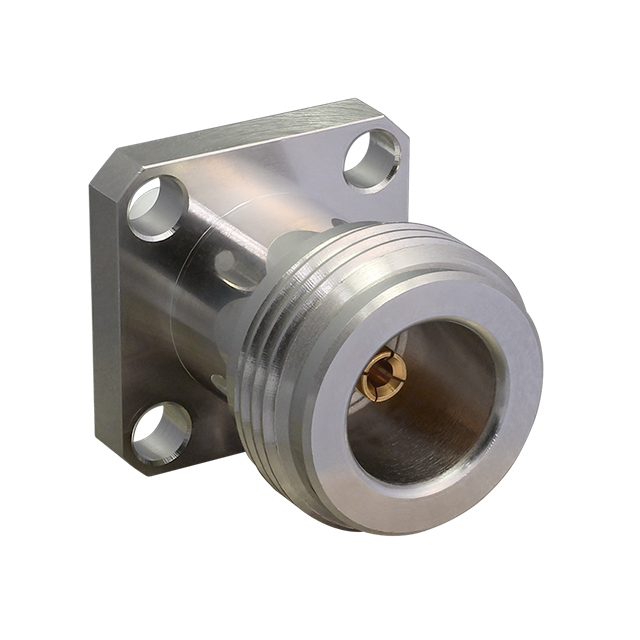

CONN002-W

Active

TE Connectivity Linx

CONN N RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity Linx

CONN N RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	CONN002-W

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1500 V

Part	Number of Ports	Body Finish	Body Material	Connector Style	Shield Termination	Voltage Rating	Center Contact Plating	Connector Type	Housing Color	Features	Frequency - Max [Max]	Mounting Feature	Contact Termination	Impedance	Dielectric Material	Mating Cycles	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Linx CONN002-W	1	White Bronze	Brass	N Type	Solder	1500 V	Gold	Female Socket Jack	Silver	Extended Insulation	11 GHz	Flange	Solder	50 Ohms	Polytetrafluoroethylene (PTFE)	500	Phosphor Bronze	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
