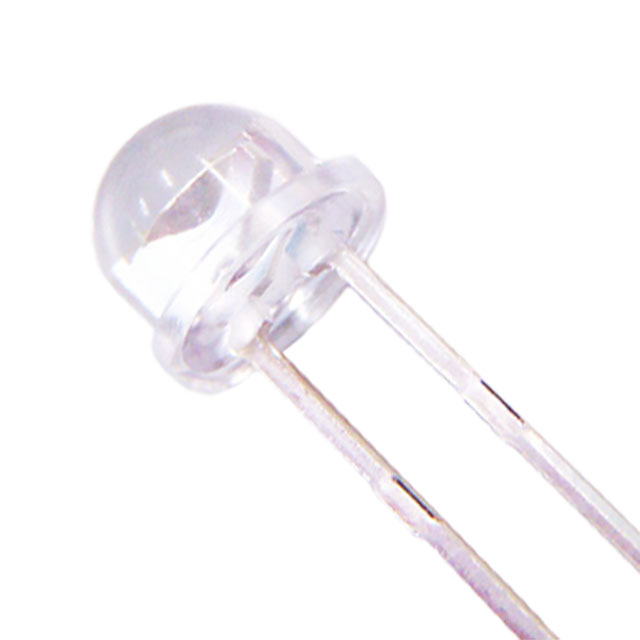

C535A-WJN-CV0W0231

Active

Cree LED

2130-4180MCD, CHROM W2-W3,BULK PACK PACK

Search across all available documentation for this part.

Active

Cree LED

2130-4180MCD, CHROM W2-W3,BULK PACK PACK

Technical Specifications

Parameters and characteristics for this part

Specification	C535A-WJN-CV0W0231

Color	Cool, White
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	6.15 mm
Lens Color	Colorless
Lens Size [diameter]	4.8 mm Dia
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	3155 mcd
Mounting Type	Through Hole
Package / Case	Radial
Supplier Device Package [diameter]	5 mm
Viewing Angle	110 °
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength - Dominant [custom]	9000 K

Part	Height (Max) [Max] [z]	Current - Test	Millicandela Rating	Lens Color	Configuration	Wavelength - Dominant [custom]	Lens Size [diameter]	Mounting Type	Supplier Device Package [diameter]	Lens Transparency	Viewing Angle	Lens Style	Package / Case	Color	Voltage - Forward (Vf) (Typ)
Cree LED C535A-WJN-CU0V0231	4.4 mm	20 mA	2260 mcd	Colorless	Standard	9000 K	4.8 mm Dia	Through Hole	5 mm	Clear	110 °	Round with Domed Top	Radial	Cool White	3.2 V
Cree LED C535A-WJN-CV0W0231	6.15 mm	20 mA	3155 mcd	Colorless	Standard	9000 K	4.8 mm Dia	Through Hole	5 mm	Clear	110 °	Round with Domed Top	Radial	Cool White	3.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White, Cool 9000K LED Indication - Discrete 3.2V Radial
