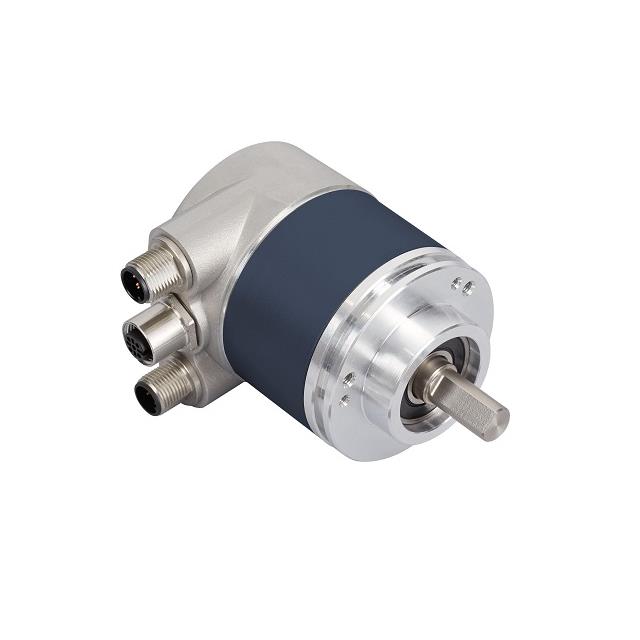

MHM5-EIB1B-1213-9A70-PRM

Active

Sensata-BEI Sensors

ENCODER ROTARY PROF 9.5MM 12BIT

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ENCODER ROTARY PROF 9.5MM 12BIT

Technical Specifications

Parameters and characteristics for this part

Specification	MHM5-EIB1B-1213-9A70-PRM

Actuator Type	Shaft
Built in Switch	False
Detent	False
Encoder Type	Absolute
Mounting Type	Chassis Mount, Motors
Orientation	User Selectable
Output Type	True
Pulses per Revolution	4096
Rotational Life (Cycles Min) [Min]	1B
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Mounting Type	Pulses per Revolution	Actuator Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Encoder Type	Orientation	Rotational Life (Cycles Min) [Min]
Sensata-BEI Sensors MHM5-EIB1B-1213-S060-PRM	Chassis Mount Motors	4096	Shaft	30 VDC	10 VDC	Connector	Absolute	User Selectable	1B
Sensata-BEI Sensors MHM5-EIB1B-1213-C100-PRM	Chassis Mount Motors	4096	Shaft	30 VDC	10 VDC	Connector	Absolute	User Selectable	1B
Sensata-BEI Sensors MHM5-EIB1B-1213-9A70-PRM	Chassis Mount Motors	4096	Shaft	30 VDC	10 VDC	Connector	Absolute	User Selectable	1B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 950.15

General part information

ENCODER ROTARY PROF 9.5MM 12BIT
