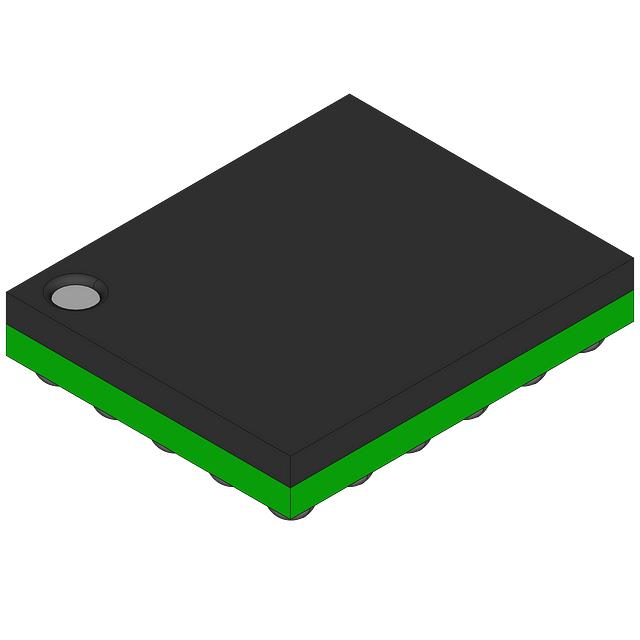

LP8725TLX-D/NOPB

Active

National Semiconductor

LP8725 POWER MANAGEMENT IC (PMIC

Search across all available documentation for this part.

Active

National Semiconductor

LP8725 POWER MANAGEMENT IC (PMIC

Technical Specifications

Parameters and characteristics for this part

Specification	LP8725TLX-D/NOPB

Applications	Controller/Converter, Multimedia Processors
Mounting Type	Surface Mount
Number of Outputs	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	DSBGA, 30-WFBGA
Supplier Device Package	30-DSBGA
Voltage - Input [Max]	4.5 V
Voltage - Input [Min]	2.6 V
Voltage - Output [Max]	3.3 V
Voltage - Output [Min]	0.8 V

Part	Number of Outputs	Mounting Type	Supplier Device Package	Voltage - Output [Min]	Voltage - Output [Max]	Package / Case	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]
National Semiconductor LP8725TLX-D/NOPB	9	Surface Mount	30-DSBGA	0.8 V	3.3 V	30-WFBGA DSBGA	Controller/Converter Multimedia Processors	2.6 V	4.5 V	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

- Controller/Converter, Multimedia Processors Voltage Regulator IC 9 Output 30-DSBGA
