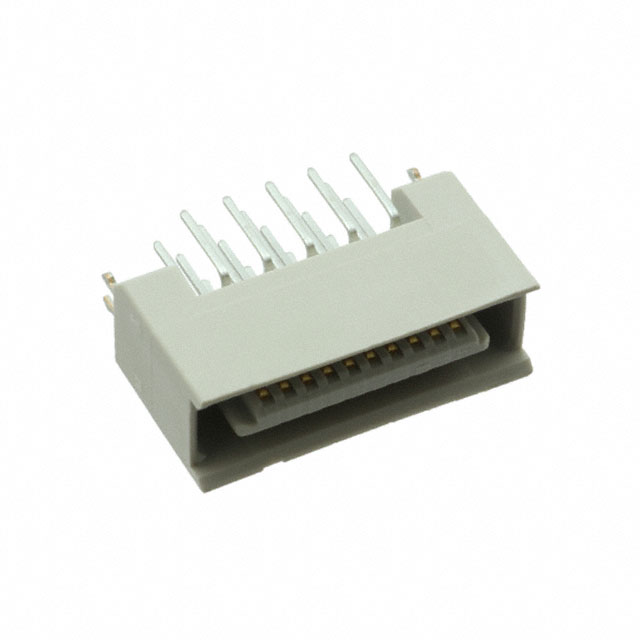

XH3A-2041-2A
ActiveOmron Electronics Inc-EMC Div
CONN PLUG 20POS VERT GOLD
Deep-Dive with AI
Search across all available documentation for this part.
XH3A-2041-2A
ActiveOmron Electronics Inc-EMC Div
CONN PLUG 20POS VERT GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XH3A-2041-2A |
|---|---|
| Contact Finish | Gold |
| Height Above Board | 0.421 in |
| Height Above Board | 10.7 mm |
| Mated Stacking Heights | 18 mm, 15 mm, 17 mm, 14 mm |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.19 | |
| 10 | $ 2.89 | |||
| 25 | $ 2.74 | |||
| 50 | $ 2.68 | |||
| 120 | $ 2.55 | |||
| 360 | $ 2.23 | |||
| 600 | $ 2.17 | |||
| 1080 | $ 1.85 | |||
| 2520 | $ 1.72 | |||
Description
General part information
XH3A-2041 Series
20 Position Connector Plug, Center Strip Contacts Through Hole Gold
Documents
Technical documentation and resources
