VEL05US050-US-BB

Obsolete

XP POWER

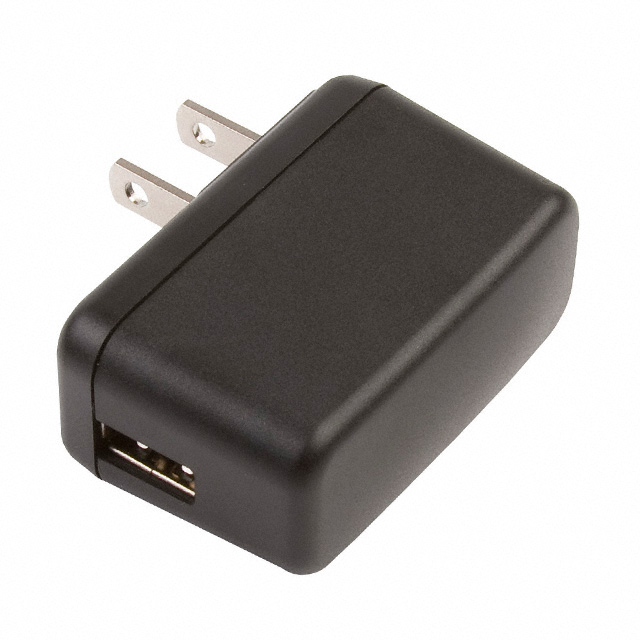

AC/DC WALL MOUNT ADAPTER 5V 5W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VEL05US050-US-BB

Obsolete

XP POWER

AC/DC WALL MOUNT ADAPTER 5V 5W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VEL05US050-US-BB

Applications	ITE (Commercial)
Approval Agency	CB, TUV
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption	100 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	5 W
Region Utilized	North America
Size / Dimension [x]	2.17 "
Size / Dimension [x]	55.1 mm
Size / Dimension [y]	24.1 mm
Size / Dimension [y]	24.13 mm
Size / Dimension [z]	35.5 mm
Size / Dimension [z]	1.4 "
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	0.28 lb
Weight	127.01 g

VEL05 Series

Part	No Load Power Consumption	Polarization	Power (Watts)	Approval Agency	Voltage - Output	Input Connector	Operating Temperature [Max]	Input Type	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Cord Length	Cord Length	Efficiency	Form	Current - Output (Max) [Max]	Weight	Weight	Output Connector	Output Connector [diameter]	Output Connector [z]	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
XP POWER VEL05US050-UK-JA	100 mW	Positive Center	5 W	CB	5 V	BS 1363	60 °C	Fixed Blade	62368-1	90 VAC	264 VAC	United Kingdom	1.5 m	59 in	Level VI	Wall Mount (Class II)	1 A	0.28 lb	127.01 g	Barrel Plug	2.1 mm 5.5 mm	12 mm	ITE (Commercial)	2.17 "	1.69 in	42.9 mm	1.95 in	55.1 mm	49.5 mm
XP POWER VEL05US120-EU-JA	100 mW	Positive Center	5 W	CB	12 V	CEE 7/16	60 °C	Fixed Blade	62368-1	90 VAC	264 VAC	Europe	1.5 m	59 in	Level VI	Wall Mount (Class II)	420 mA	0.28 lb	127.01 g	Barrel Plug	2.1 mm 5.5 mm	12 mm	ITE (Commercial)	2.17 "	2.13 "	54 mm	24.13 mm	55.1 mm	24.1 mm
XP POWER VEL05US090-US-JA	100 mW	Positive Center	5 W	CB	9 V	NEMA 1-15P	60 °C	Fixed Blade	62368-1	90 VAC	264 VAC	North America	1.5 m	59 in	Level VI	Wall Mount (Class II)	550 mA	0.28 lb	127.01 g	Barrel Plug	2.1 mm 5.5 mm	12 mm	ITE (Commercial)	2.17 "	1.4 "	35.5 mm	24.13 mm	55.1 mm	24.1 mm
XP POWER VEL05US050-US-BB	100 mW		5 W	CB TUV	5 V	NEMA 1-15P	60 °C	Fixed Blade	62368-1	90 VAC	264 VAC	North America			Level VI	Wall Mount (Class II)	1 A	0.28 lb	127.01 g				ITE (Commercial)	2.17 "	1.4 "	35.5 mm	24.13 mm	55.1 mm	24.1 mm
XP POWER VEL05US060-EU-JA	100 mW	Positive Center	5 W	CB	6 V	CEE 7/16	60 °C	Fixed Blade	62368-1	90 VAC	264 VAC	Europe	1.5 m	59 in	Level VI	Wall Mount (Class II)	830 mA	0.28 lb	127.01 g	Barrel Plug	2.1 mm 5.5 mm	12 mm	ITE (Commercial)	2.17 "	2.13 "	54 mm	24.13 mm	55.1 mm	24.1 mm
XP POWER VEL05US050-US-JA	100 mW	Positive Center	5 W	CB TUV	5 V	NEMA 1-15P	60 °C	Fixed Blade	62368-1	90 VAC	264 VAC	North America	1.5 m	59 in	Level VI	Wall Mount (Class II)	1 A	0.28 lb	127.01 g	Barrel Plug	2.1 mm 5.5 mm	12 mm	ITE (Commercial)	2.17 "	1.4 "	35.5 mm	24.13 mm	55.1 mm	24.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.00
		5	$ 4.85
		10	$ 4.70
		25	$ 4.50
		100	$ 4.20

Description

General part information

VEL05 Series

5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
