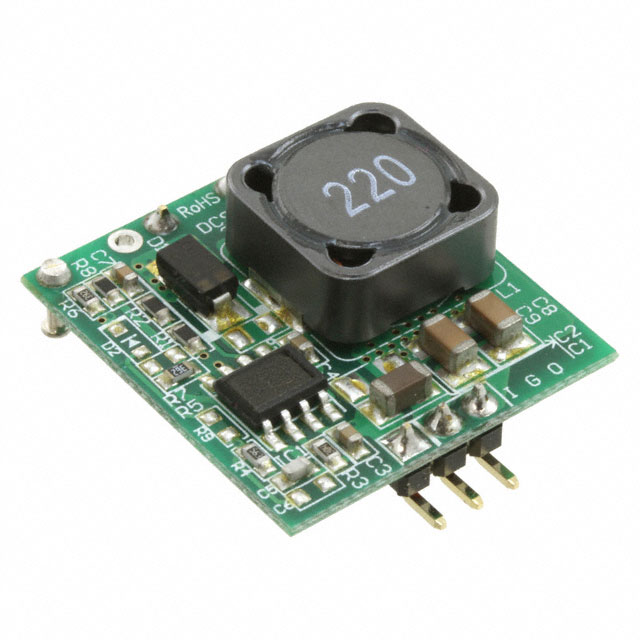

R-78T5.0-1.0/AL-R

Active

RECOM Power

NON-ISOLATED DC/DC CONVERTERS 8-42VIN 5V 1A SIP3 23X27.2X10MM

Search across all available documentation for this part.

Active

RECOM Power

NON-ISOLATED DC/DC CONVERTERS 8-42VIN 5V 1A SIP3 23X27.2X10MM

Technical Specifications

Parameters and characteristics for this part

Non-Isolated DC/DC Converters 8-42VIN 5V 1A SIP3 23x29.4x8mm

Part	Type	Current - Output (Max) [Max]	Features	Efficiency	Power (Watts)	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case
RECOM Power R-78T5.0-1.0/AL-R	Non-Isolated PoL Module	1 A	SCP	92 %	5 W	1	0.91 in	10 mm	0.39 in	0.98 "	23 mm	25 mm	ITE (Commercial)	Surface Mount	8 V	42 V	5 V	85 °C	-40 °C
RECOM Power R-78T12-1.0/AC-TRAY	Non-Isolated PoL Module	1 A	SCP	95 %	12 W	1	0.91 in	10 mm	0.39 in	0.98 "	23 mm	25 mm	ITE (Commercial)	Surface Mount	15 V	42 V	12 V	85 °C	-40 °C	3-SMD Module
RECOM Power R-78T3.3-1.0/FC-R	Non-Isolated PoL Module	1 A	SCP	88 %	3 W	1	0.91 in	10 mm	0.39 in	0.98 "	23 mm	25 mm	ITE (Commercial)	Surface Mount	7 V	42 V	3.3 V	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated DC/DC Converters 8-42VIN 5V 1A SIP3 23x29.4x8mm
