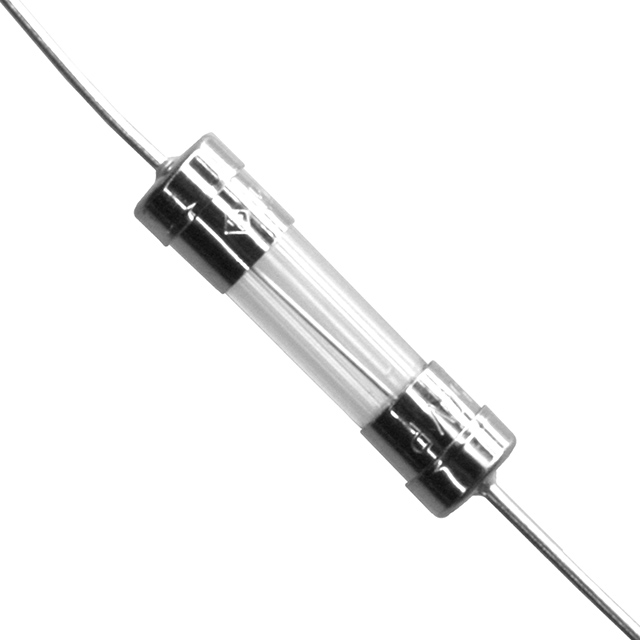

021301.6MXEP
ActiveLittelfuse/Commercial Vehicle Products
FUSE, CARTRIDGE, TIME DELAY, 1.6 A, 250 V, 5MM X 20MM, 0.2" X 0.79", 213 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
021301.6MXEP
ActiveLittelfuse/Commercial Vehicle Products
FUSE, CARTRIDGE, TIME DELAY, 1.6 A, 250 V, 5MM X 20MM, 0.2" X 0.79", 213 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 021301.6MXEP |
|---|---|
| Approval Agency | CE, PSE, CCC, BSI, CSA, SEMKO, VDE, UR |
| Breaking Capacity @ Rated Voltage | 35 A |
| Current Rating (Amps) | 1.6 A |
| DC Cold Resistance | 0.0551 Ohms |
| Melting I²t | 44.2 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension [diameter] | 5.8 mm |
| Size / Dimension [diameter] | 0.228 in |
| Size / Dimension [z] | 22.5 mm |
| Size / Dimension [z] | 0.886 " |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
021301.6 Series
The 213 Series is a 5x20mm time-lag, surge-withstand, glass body cartridge fuse that is designed to IEC specifications.
