9420801.16.T

Active

JULABO

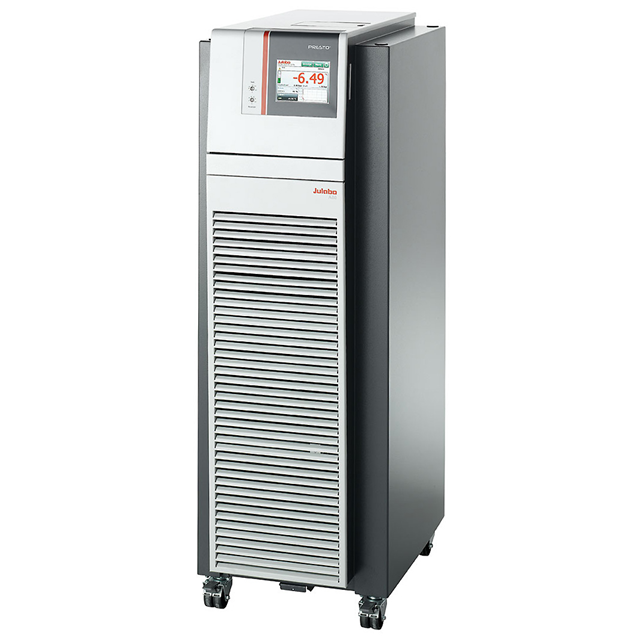

PRESTO A80T, REFRIGERATED/HEATIN

Search across all available documentation for this part.

Active

JULABO

PRESTO A80T, REFRIGERATED/HEATIN

Technical Specifications

Parameters and characteristics for this part

Specification	9420801.16.T

Current	15 A
Dimensions - Overall [x]	650.2 mm
Dimensions - Overall [x]	25.6 "
Dimensions - Overall [y]	16.9 in
Dimensions - Overall [y]	429.3 mm
Dimensions - Overall [z]	1300 mm
Dimensions - Overall [z]	51.18 "
Features	Temperature Control
Flow Rate [Max]	40 LPM
Flow Rate [Max]	10.57 GPM
Flow Rate [Min]	16 LPM
Flow Rate [Min]	4.23 GPM
Operating Temperature [custom]	-92 °C, 250 °C
Power - Cooling	1200 W
Product Type	Active, Recirculating Chiller/Heater
Voltage [Max]	220 VAC
Voltage [Min]	208 VAC
Weight	164.2 kg
Weight	362 lbs

Part	Product Type	Flow Rate [Min]	Flow Rate [Min]	Flow Rate [Max]	Flow Rate [Max]	Dimensions - Overall [x]	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [x]	Dimensions - Overall [z]	Voltage [Max]	Voltage [Min]	Current	Features	Power - Cooling	Operating Temperature [custom]	Weight	Weight
JULABO 9420801.16.T	Active Recirculating Chiller/Heater	16 LPM	4.23 GPM	40 LPM	10.57 GPM	650.2 mm	16.9 in	1300 mm	429.3 mm	25.6 "	51.18 "	220 VAC	208 VAC	15 A	Temperature Control	1200 W	-92 °C 250 °C	164.2 kg	362 lbs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51755.00

General part information

Active, Recirculating Chiller/Heater 208 ~ 220VAC 1200 W 15 A 4.23GPM-10.57GPM (16.0LPM-40.0LPM)

Technical documentation and resources

No documents available
