CN240A60
ActiveSensata-Crydom
SSR RELAY SPST-NO 2A 24-280V
Deep-Dive with AI
Search across all available documentation for this part.
CN240A60
ActiveSensata-Crydom
SSR RELAY SPST-NO 2A 24-280V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CN240A60 |
|---|---|
| Approval Agency | CE, cURus |
| Load Current | 2 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Output Type | AC, Zero Cross |

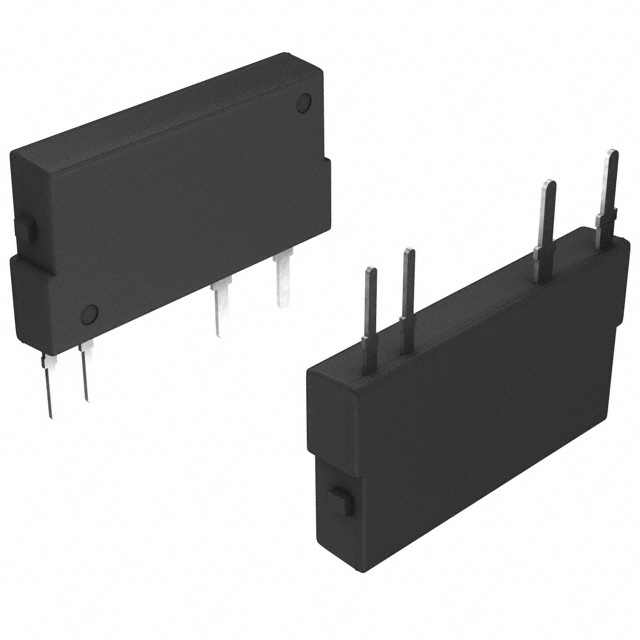

| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIP |
| Termination Style | PC Pin |
| Voltage - Input [Max] | 72 V |
| Voltage - Input [Min] | 38 V |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 18.95 | |
| 10 | $ 18.05 | |||
| 50 | $ 17.23 | |||
| 100 | $ 16.72 | |||
Description
General part information
CN240A Series
Solid State SPST-NO (1 Form A) 4-SIP
