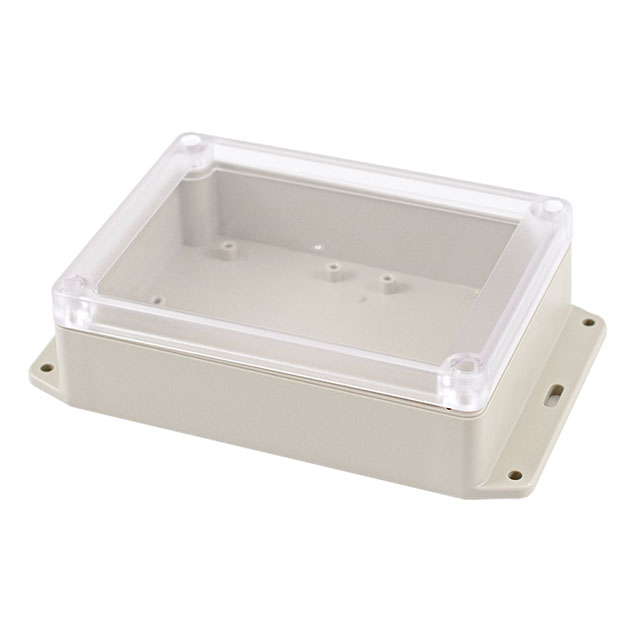

RP1205BFC
ActiveHammond Manufacturing
BOX ABS GRAY/CLR 6.89"L X 4.2"W
Deep-Dive with AI
Search across all available documentation for this part.
RP1205BFC
ActiveHammond Manufacturing
BOX ABS GRAY/CLR 6.89"L X 4.2"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RP1205BFC |
|---|---|
| Area (L x W) | 29 in˛ |
| Area (L x W) | 187 cm˛ |
| Color | Gray, Clear Cover/Door |
| Container Type | Box |
| Design | Cover Included |
| Height [z] | 1.77 in |
| Height [z] | 44.96 mm |
| Material | ABS |
| Material Flammability Rating | UL94 HB |
| Size / Dimension [x] | 175.01 mm |
| Size / Dimension [x] | 6.89 in |
| Size / Dimension [y] | 4.2 " |
| Size / Dimension [y] | 106.68 mm |
| Thickness | 2.03 mm |
| Thickness | 0.08 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 18.60 | |
| 5 | $ 18.08 | |||
| 10 | $ 17.05 | |||
| 25 | $ 16.53 | |||
| 50 | $ 15.50 | |||
| 100 | $ 14.98 | |||
| 250 | $ 13.95 | |||
| 500 | $ 13.43 | |||
Description
General part information
RP1205 Series
Box ABS Gray, Clear Cover/Door Cover Included 6.890" L x 4.200" W (175.01mm x 106.68mm) X 1.770" (44.96mm)
Documents
Technical documentation and resources
No documents available
