B30B-PNDZS-1

Active

JST Sales America Inc.

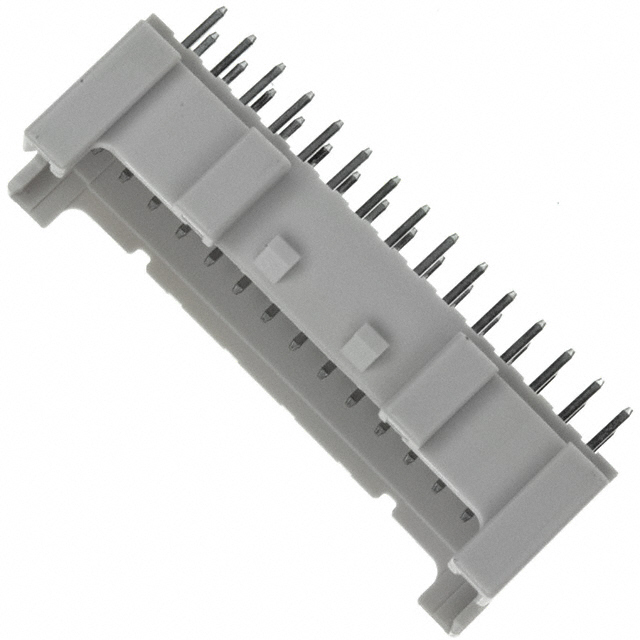

CONN HEADER VERT 30POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 30POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B30B-PNDZS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Ivory
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	12.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	5 mm
Row Spacing - Mating	0.197 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Connector Type	Contact Material	Shrouding	Mounting Type	Contact Finish - Post	Contact Length - Post	Contact Length - Post [x]	Contact Shape	Number of Rows	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Insulation Material	Insulation Color	Voltage Rating	Mated Stacking Heights	Style	Insulation Height [z]	Insulation Height [z]	Termination	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Number of Positions Loaded
JST Sales America Inc. B30B-PNDZS-1	Header	Copper Alloy	Shrouded - 4 Wall	Through Hole	Tin	3.2 mm	0.126 in	Square	2	3 A	-25 °C	85 °C	Board Guide	Polyamide (PA66) Nylon 6/6 Glass Filled	Ivory	250 VDC	12.9 mm	Board to Cable/Wire	9.91 mm	0.39 in	Solder	Locking Ramp	0.079 in	2 mm	Male Pin	30	5 mm	0.197 in	UL94 V-0	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 30 position 0.079" (2.00mm)
