6305G1

Active

Anderson Power Products, Inc.

SBE320/SBX350 AUX.CNT.KIT-1331 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

SBE320/SBX350 AUX.CNT.KIT-1331 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	6305G1

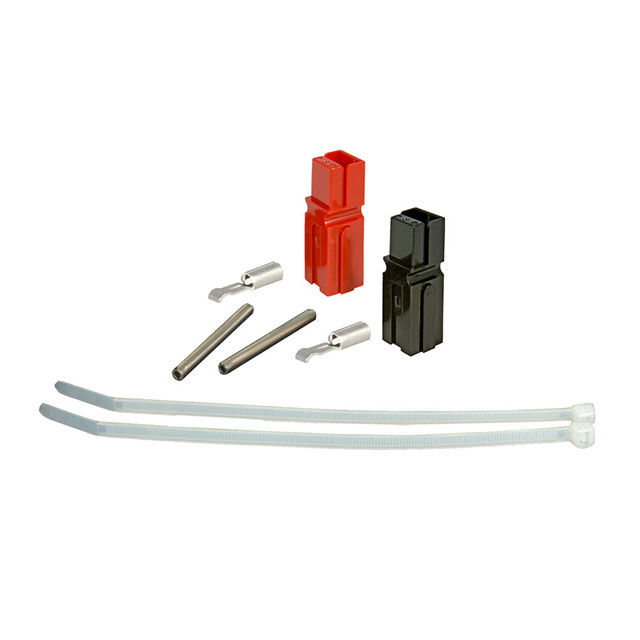

Kit Type	Rectangular - Housings, Contacts, Retaining Clips, Retaining Pins, Zip Cable Straps
Values	2 Contacts, 1 Retaining Clip, 2 Zip Cable Straps, 2 Retaing Pins, 2 Housings

Part	Accessory Type	For Use With/Related Products	Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Material - Insulation	Current Rating (Amps)	Termination	Connector Type	Fastening Type	Contact Finish	Number of Positions	Contact Material	Mounting Type	Number of Rows	Wire Gauge	Connector Style	Values	Kit Type
Anderson Power Products, Inc. 80-17	Polarizing Device (Key Plug Post)	A Series™
Anderson Power Products, Inc. 6325G5			Gray	600 V	-20 C	105 ░C	Polycarbonate	PC	175 A	Crimp	Non-Gendered	Spring Retention	Silver	2	Copper Alloy	Free Hanging (In-Line)	1	2 AWG	2 Poles
Anderson Power Products, Inc. 6325G1			Gray	600 V	-20 C	105 ░C	Polycarbonate	PC	175 A	Crimp	Non-Gendered	Spring Retention	Silver	2	Copper Alloy	Free Hanging (In-Line)	1	44 AWG	2 Poles
Anderson Power Products, Inc. CH330
Anderson Power Products, Inc. 6305G1																				1 Retaining Clip 2 Contacts 2 Housings 2 Retaing Pins 2 Zip Cable Straps	Rectangular - Housings Contacts Retaining Clips Retaining Pins Zip Cable Straps
Anderson Power Products, Inc. CH324

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Kit Rectangular - Housings, Contacts, Retaining Clips, Retaining Pins, Zip Cable Straps
