19140020402

Active

HARTING Technology Group

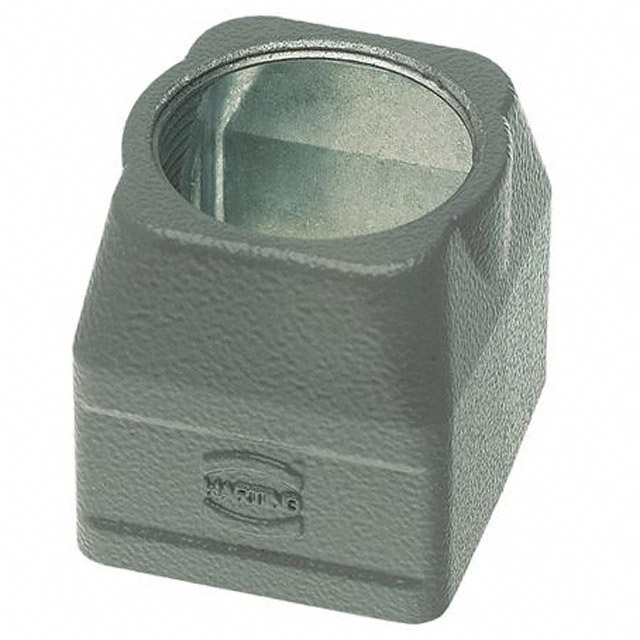

HEAVY DUTY CONNECTOR, M32, HOOD, TOP ENTRY, ALUMINUM BODY, SCREW

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M32, HOOD, TOP ENTRY, ALUMINUM BODY, SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	19140020402

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	44 mm
Size / Dimension [x]	1.732 "
Size / Dimension [y]	1.535 in
Size / Dimension [y]	39 mm
Size / Dimension [z]	41 mm
Size / Dimension [z]	1.614 in
Style	Top Entry
Thread Size	M32

Part	Style	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Connector Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Housing Material	Housing Finish	Housing Color	Thread Size
HARTING Technology Group 19140020401	Top Entry	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood	44 mm	1.732 "	1.535 in	41 mm	1.614 in	39 mm	Aluminum Die Cast	Powder Coated	Gray	M25
HARTING Technology Group 19140020402	Top Entry	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood	44 mm	1.732 "	1.535 in	41 mm	1.614 in	39 mm	Aluminum Die Cast	Powder Coated	Gray	M32
HARTING Technology Group 19140020501	Side Entry	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Hood	44 mm	1.732 "	1.535 in	41 mm	1.614 in	39 mm	Aluminum Die Cast	Powder Coated	Gray	M25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M32 IP65 - Dust Tight, Water Resistant
