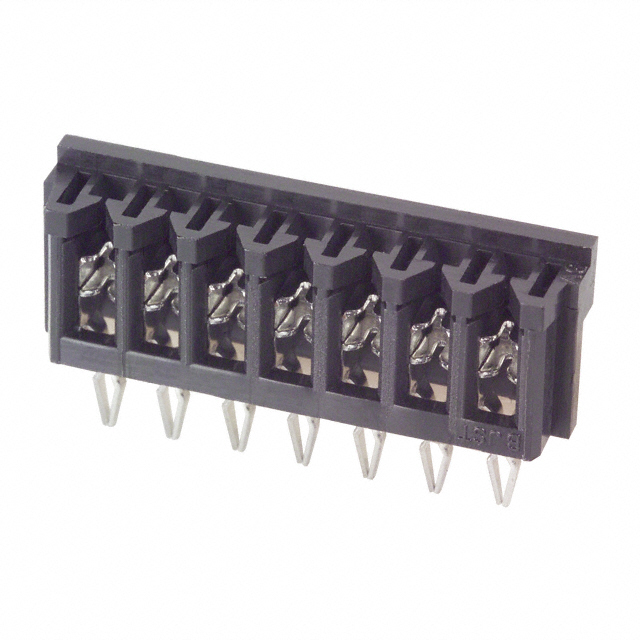

07DB-4K
ActiveJST Sales America Inc.
CONN WIRE IDC 7POS 24-28AWG PCB
Deep-Dive with AI
Search across all available documentation for this part.
07DB-4K
ActiveJST Sales America Inc.
CONN WIRE IDC 7POS 24-28AWG PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 07DB-4K |
|---|---|
| Board-Side Pitch | 2.5 mm |
| Board-Side Pitch | 0.098 in |
| Cable Pitch | 2.5 mm |
| Cable Pitch | 0.098 in |
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Individual Wires |
| Contact Finish | Tin-Lead |
| Features | Closed End |
| Mounting Type | Through Hole, Press-Fit |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Wire Gauge | Stranded |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 0.34 | |
Description
General part information
07DB Series
7 Position Individual Wires Connector Black IDC 24-28 AWG, Stranded Through Hole, Press-Fit
Documents
Technical documentation and resources
