540-99-032-24-000000

Obsolete

Mill-Max Manufacturing Corp.

CONN SOCKET PLCC 32POS TIN-LEAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

540-99-032-24-000000

Obsolete

Mill-Max Manufacturing Corp.

CONN SOCKET PLCC 32POS TIN-LEAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	540-99-032-24-000000

Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Resistance	20 mOhm
Features	Closed Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	32
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Type	PLCC

540-99 Series

Part	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Termination	Pitch - Post	Pitch - Post	Type	Contact Finish - Post	Contact Resistance	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 540-99-044-17-400000	Closed Frame	200 µin	5.08 µm	Tin-Lead	Surface Mount	5.08 µm	200 µin	UL94 V-0	Solder	1.27 mm	0.05 in	PLCC	Tin-Lead	20 mOhm	4 11	44	0.05 in	1.27 mm
Mill-Max Manufacturing Corp. 540-99-020-17-400000	Closed Frame	200 µin	5.08 µm	Tin-Lead	Surface Mount	5.08 µm	200 µin	UL94 V-0	Solder	1.27 mm	0.05 in	PLCC	Tin-Lead	20 mOhm			0.05 in	1.27 mm	5	20	4
Mill-Max Manufacturing Corp. 540-99-020-24-000000	Closed Frame	200 µin	5.08 µm	Tin-Lead	Through Hole	5.08 µm	200 µin	UL94 V-0	Solder	2.54 mm	0.1 in	PLCC	Tin-Lead	20 mOhm			0.05 in	1.27 mm	5	20	4
Mill-Max Manufacturing Corp. 540-99-052-24-000000	Closed Frame	200 µin	5.08 µm	Tin-Lead	Through Hole	5.08 µm	200 µin	UL94 V-0	Solder	2.54 mm	0.1 in	PLCC	Tin-Lead	20 mOhm			0.05 in	1.27 mm
Mill-Max Manufacturing Corp. 540-99-020-17-400200	Closed Frame	200 µin	5.08 µm	Tin-Lead	Surface Mount	5.08 µm	200 µin	UL94 V-0	Solder	1.27 mm	0.05 in	PLCC	Tin-Lead	20 mOhm			0.05 in	1.27 mm	5	20	4
Mill-Max Manufacturing Corp. 540-99-084-24-000000	Closed Frame	200 µin	5.08 µm	Tin-Lead	Through Hole	5.08 µm	200 µin	UL94 V-0	Solder	2.54 mm	0.1 in	PLCC	Tin-Lead	20 mOhm			0.05 in	1.27 mm
Mill-Max Manufacturing Corp. 540-99-032-24-000000	Closed Frame	200 µin	5.08 µm	Tin-Lead	Through Hole	5.08 µm	200 µin	UL94 V-0	Solder	2.54 mm	0.1 in	PLCC	Tin-Lead	20 mOhm		32	0.05 in	1.27 mm
Mill-Max Manufacturing Corp. 540-99-032-17-400000	Closed Frame	200 µin	5.08 µm	Tin-Lead	Surface Mount	5.08 µm	200 µin	UL94 V-0	Solder	1.27 mm	0.05 in	PLCC	Tin-Lead	20 mOhm		32	0.05 in	1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

540-99 Series

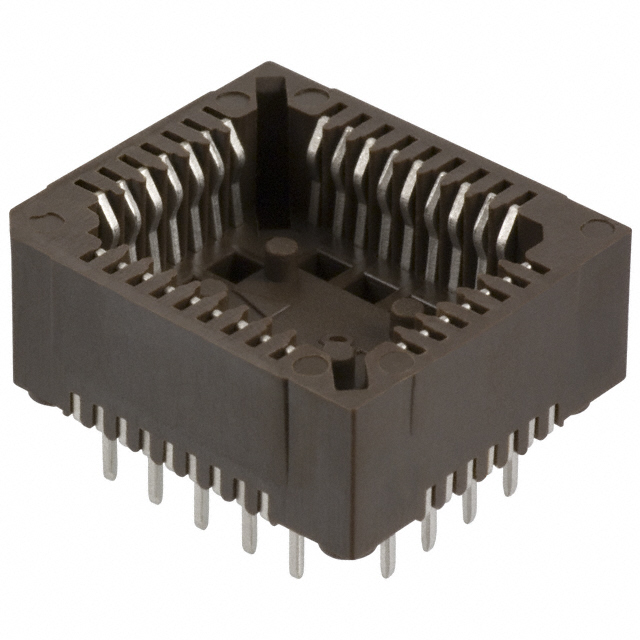

32 (2 x 7, 2 x 9) Pos PLCC Socket Tin-Lead Through Hole
