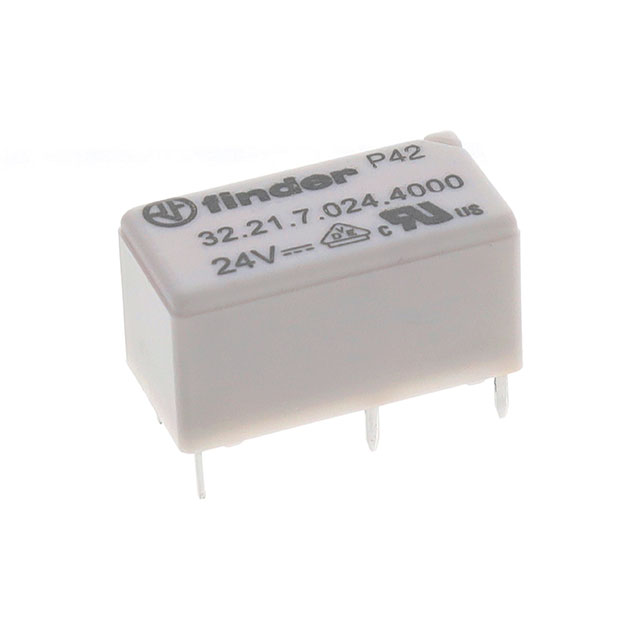

32.21.7.024.4000

Active

Finder Relays, Inc.

RELAY GEN PURPOSE SPDT 6A 24V

Search across all available documentation for this part.

Active

Finder Relays, Inc.

RELAY GEN PURPOSE SPDT 6A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Release Time	Operate Time	Contact Rating (Current)	Load - Max Switching [Max]	Coil Voltage	Coil Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Must Operate Voltage	Approval Agency	Coil Resistance	Mounting Type	Switching Voltage [Max]	Contact Form	Termination Style	Relay Type
Finder Relays, Inc. 32.21.7.005.2300	2 ms	6 ms	6 A	2400 VA	5 VDC	Non Latching	Silver Cadmium Oxide (AgCdO)	85 °C	-40 °C	40 mA	3.9 VDC	cURus VDE	125 Ohms	Through Hole	400 VAC	SPST-NO (1 Form A)	PC Pin	General Purpose
Finder Relays, Inc. 32.21.7.024.4000	4 ms	6 ms	6 A	2400 VA	24 VDC	Non Latching	Silver Tin Oxide (AgSnO)	85 °C	-40 °C	8.3 mA	18.7 VDC	cURus EAC VDE	2.88 kOhms	Through Hole	400 VAC	SPDT (1 Form C)	PC Pin	General Purpose
Finder Relays, Inc. 32.21.7.024.2300	2 ms	6 ms	6 A	2400 VA	24 VDC	Non Latching	Silver Cadmium Oxide (AgCdO)	85 °C	-40 °C	8.3 mA	18.7 VDC	cURus VDE	2.88 kOhms	Through Hole	400 VAC	SPST-NO (1 Form A)	PC Pin	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
