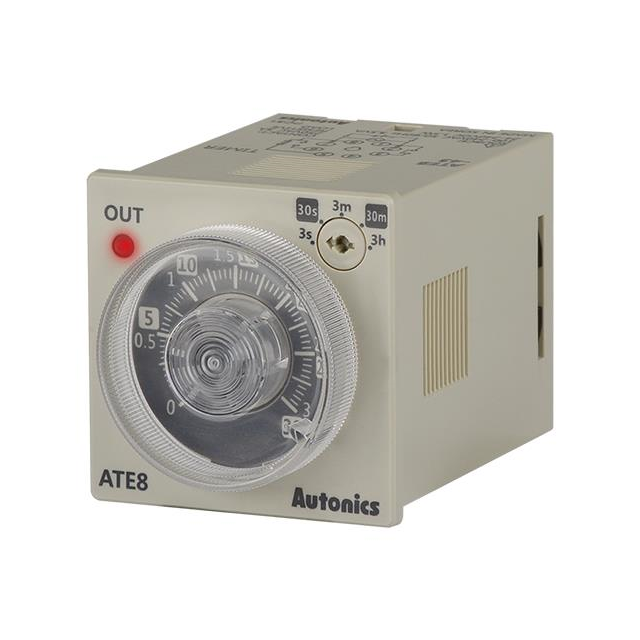

ATE8-43

Active

AUTONICS

RELAY TIME DELAY 3HR 3A 250V

Search across all available documentation for this part.

Active

AUTONICS

RELAY TIME DELAY 3HR 3A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Relay Type	Contact Rating @ Voltage	Function	Timing Adjustment Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Circuit	Mounting Type	Timing Initiate Method	Termination Style	Delay Time [Min]	Delay Time [Max]
AUTONICS ATE8-46D	Mechanical Relay	3 A 30 VDC 250 VAC	On-Delay	Hand Dial	240 VDC 240 VAC	24 V 100 VAC	DPDT (2 Form C)	Socketable	Input Voltage	Plug In 8 Pin (Octal)
AUTONICS ATE8-43D	Mechanical Relay	3 A 30 VDC 250 VAC	On-Delay	Hand Dial	240 VDC 240 VAC	24 V 100 VAC	DPDT (2 Form C)	Socketable	Input Voltage	Plug In 8 Pin (Octal)
AUTONICS ATE8-41	Mechanical Relay	3 A 250 VAC	On-Delay	Hand Dial	240 VDC 240 VAC	24 V 100 VAC	SPDT (1 Form C) SPST-NO (1 Form A)	Socketable	Input Voltage	Plug In 8 Pin (Octal)	1 Sec	1 Year
AUTONICS ATE8-4C	Mechanical Relay	3 A 250 VAC	On-Delay	Hand Dial	240 VDC 240 VAC	24 V 100 VAC	SPDT (1 Form C) SPST-NO (1 Form A)	Socketable	Input Voltage	Plug In 8 Pin (Octal)	12 Sec	24 Hrs
AUTONICS ATE8-43	Mechanical Relay	3 A 250 VAC	On-Delay	Hand Dial	240 VDC 240 VAC	24 V 100 VAC	SPDT (1 Form C) SPST-NO (1 Form A)	Socketable	Input Voltage	Plug In 8 Pin (Octal)	3 Sec	3 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 23.00

General part information

On-Delay Time Delay Relay SPST-NO (1 Form A), SPDT (1 Form C) 3 Sec ~ 3 Hrs Delay 3A @ 250VAC Socketable
