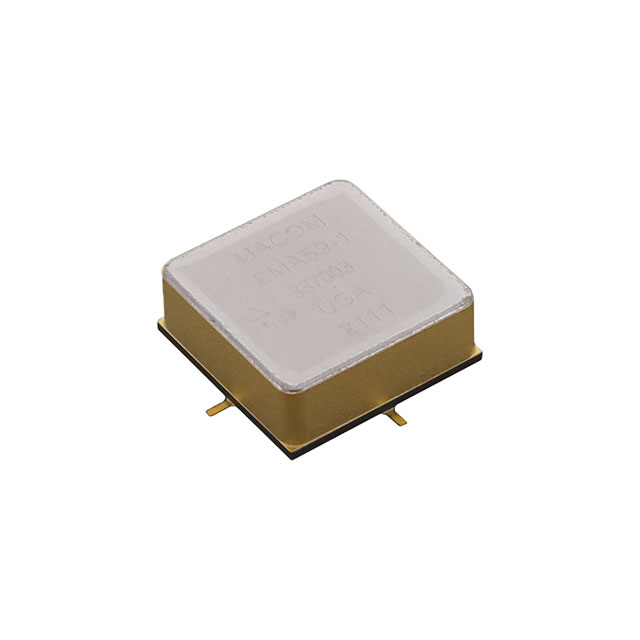

SMA59-1
ActiveMACOM Technology Solutions
IC RF AMP GPS 2MHZ-800MHZ SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMA59-1
ActiveMACOM Technology Solutions
IC RF AMP GPS 2MHZ-800MHZ SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMA59-1 |
|---|---|
| Current - Supply | 88 mA |
| Frequency [Max] | 800 MHz |
| Frequency [Min] | 2 MHz |
| Gain | 10.5 dBi |
| Noise Figure | 6 dB |
| P1dB | 22 dBm |
| Package / Case | 4-SMD Module |
| RF Type | General Purpose |
| Test Frequency [Max] | 800 MHz |
| Test Frequency [Min] | 2 MHz |
| Voltage - Supply | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 546.46 | |
Description
General part information
SMA59 Series
RF Amplifier IC General Purpose 2MHz ~ 800MHz
Documents
Technical documentation and resources
