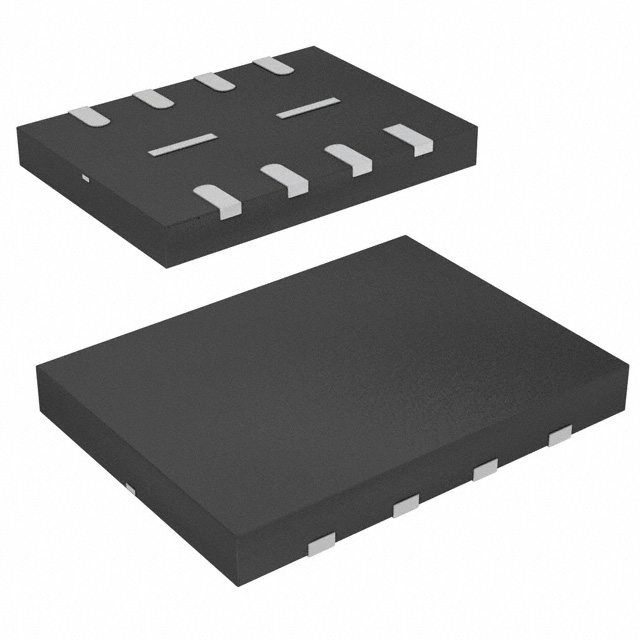

W25Q16JVUUIQ TR

Active

Winbond Electronics

IC FLASH 16MBIT SPI/QUAD 8USON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W25Q16JVUUIQ TR

Active

Winbond Electronics

IC FLASH 16MBIT SPI/QUAD 8USON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W25Q16JVUUIQ TR

Clock Frequency	133 MHz
Memory Format	FLASH
Memory Interface	SPI - Quad I/O
Memory Organization	2 M
Memory Size	16 Mb
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-UFDFN Exposed Pad
Supplier Device Package	8-USON (4x3)
Technology	FLASH - NOR
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V
Write Cycle Time - Word, Page	3 ms

W25Q16 Series

...

Part	Package / Case	Mounting Type	Memory Format	Write Cycle Time - Word, Page	Supplier Device Package	Memory Organization	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Memory Type	Memory Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Size	Clock Frequency	Access Time	Package / Case [y]	Package / Case [x]	Package / Case	Package / Case	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]
Winbond Electronics W25Q16JVUUIQ TR	8-UFDFN Exposed Pad	Surface Mount	FLASH	3 ms	8-USON (4x3)	2 M	85 °C	-40 °C	FLASH - NOR	Non-Volatile	SPI - Quad I/O	2.7 V	3.6 V	16 Mb	133 MHz
Winbond Electronics W25Q16JWSSSQ	8-SOIC	Surface Mount	FLASH	3 ms	8-SOIC	2 M	125 °C	-40 °C	FLASH - NOR	Non-Volatile	DTR QPI Quad I/O SPI	1.65 V	1.95 V	16 Mb	133 MHz	6 ns	5.3 mm	0.209 "
Winbond Electronics W25Q16DVDAIG	8-DIP	Through Hole	FLASH		8-PDIP	2 M	85 °C	-40 °C	FLASH - NOR	Non-Volatile	SPI - Quad I/O	2.7 V	3.6 V	16 Mb	104 MHz				0.3 in	7.62 mm	3 ms	50 µs
Winbond Electronics W25Q16FWUXAQ	8-UFDFN Exposed Pad	Surface Mount	FLASH		8-USON (2x3)	2 M	105 °C	-40 °C	FLASH - NOR	Non-Volatile	QPI Quad I/O SPI	1.65 V	1.95 V	16 Mb	104 MHz	6 ns					3 ms	60 µs
Winbond Electronics W25Q16JWZPSQ	8-WDFN Exposed Pad	Surface Mount	FLASH	3 ms	8-WSON (6x5)	2 M	125 °C	-40 °C	FLASH - NOR	Non-Volatile	DTR QPI Quad I/O SPI	1.65 V	1.95 V	16 Mb	133 MHz	6 ns
Winbond Electronics W25Q16DVSSIQ	8-SOIC	Surface Mount	FLASH		8-SOIC	2 M	85 °C	-40 °C	FLASH - NOR	Non-Volatile	SPI - Quad I/O	2.7 V	3.6 V	16 Mb	104 MHz		5.3 mm	0.209 "			3 ms	50 µs
Winbond Electronics W25Q16DWSSAG	8-SOIC	Surface Mount	FLASH		8-SOIC	2 M	105 °C	-40 °C	FLASH - NOR	Non-Volatile	QPI Quad I/O SPI	1.65 V	1.95 V	16 Mb	104 MHz	7 ns	5.3 mm	0.209 "			3 ms	40 µs
Winbond Electronics W25Q16FWSVIQ	8-SOIC	Surface Mount	FLASH		8-VSOP	2 M	85 °C	-40 °C	FLASH - NOR	Non-Volatile	QPI Quad I/O SPI	1.65 V	1.95 V	16 Mb	104 MHz		3.9 mm	0.154 in			3 ms	60 µs
Winbond Electronics W25Q16FWSNIQ	8-SOIC	Surface Mount	FLASH		8-SOIC	2 M	85 °C	-40 °C	FLASH - NOR	Non-Volatile	QPI Quad I/O SPI	1.65 V	1.95 V	16 Mb	104 MHz		3.9 mm	0.154 in			3 ms	60 µs
Winbond Electronics W25Q16DWSSIG	8-SOIC	Surface Mount	FLASH		8-SOIC	2 M	85 °C	-40 °C	FLASH - NOR	Non-Volatile	QPI Quad I/O SPI	1.65 V	1.95 V	16 Mb	104 MHz		5.3 mm	0.209 "			3 ms	40 µs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.67
		10	$ 0.59
		25	$ 0.57
		50	$ 0.55
		100	$ 0.53
		250	$ 0.50
		500	$ 0.49
		1000	$ 0.47
	Digi-Reel®	1	$ 0.67
		10	$ 0.59
		25	$ 0.57
		50	$ 0.55
		100	$ 0.53
		250	$ 0.50
		500	$ 0.49
		1000	$ 0.47
	Tape & Reel (TR)	5000	$ 0.43
		10000	$ 0.42
		15000	$ 0.41
		25000	$ 0.40

Description

General part information

W25Q16 Series

FLASH - NOR Memory IC 16Mbit SPI - Quad I/O 133 MHz 8-USON (4x3)
