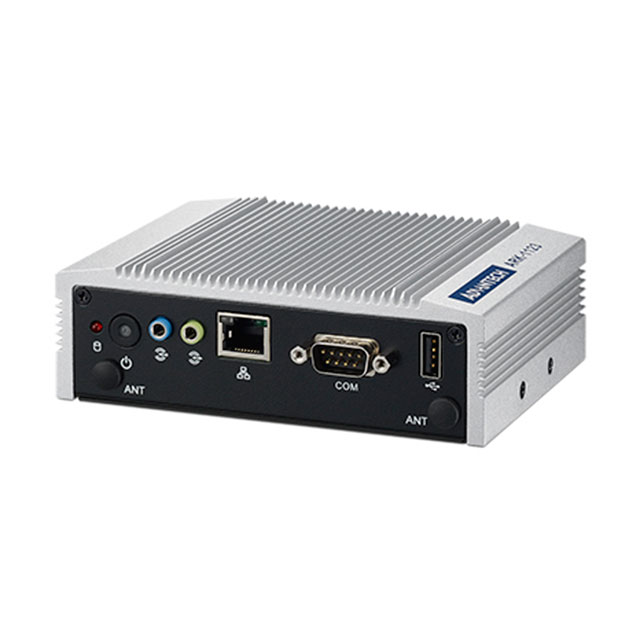

ARK-1123H-U0A1E
ObsoleteAdvantech Corp
SBC 2.0GHZ 4 CORE 8GB/0GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ARK-1123H-U0A1E |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Intel Celeron J1900 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | mPCIe |
| Number of Cores | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 14.04 W |
| RAM Capacity/Installed [custom] | 8 GB |
| RAM Capacity/Installed [custom] | 0 GB |
| RS-232 (422, 485) | 1 |
| Size / Dimension [x] | 133.85 mm |
| Size / Dimension [x] | 5.27 " |
| Size / Dimension [y] | 3.71 in |
| Size / Dimension [y] | 94.23 mm |
| Speed | 2 GHz |
| Storage Interface | mSATA, SATA HDD |
| USB | USB 2.0 (2), USB 3.0 (1) |
| Video Outputs | HDMI |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ARK-1123 Series
Single Board Computer 2.0GHz 4 Core 8GB/0GB RAM Intel Celeron J1900
