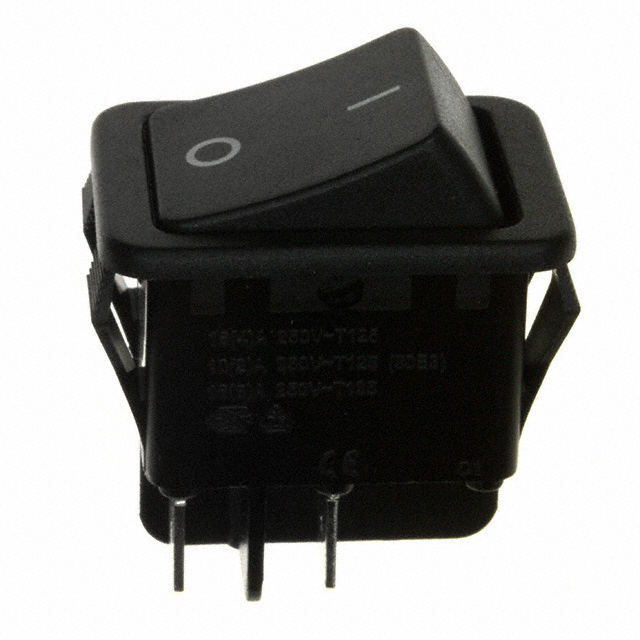

YRM32F2FBBNN
ActiveZF Electronics
SWITCH ROCKER ON OFF DPST QUICK CONNECT CURVED ROCKER 20A 250VAC 559.27VA 50000CYCLES
Deep-Dive with AI
Search across all available documentation for this part.
YRM32F2FBBNN
ActiveZF Electronics
SWITCH ROCKER ON OFF DPST QUICK CONNECT CURVED ROCKER 20A 250VAC 559.27VA 50000CYCLES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YRM32F2FBBNN |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Electrical Life | 6000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Panel Cutout Dimensions [x] | 30 mm |
| Panel Cutout Dimensions [y] | 22 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.20 | |
| 10 | $ 2.76 | |||
| 25 | $ 2.60 | |||
| 50 | $ 2.49 | |||
| 100 | $ 2.38 | |||
Description
General part information
YRM32F2F Series
Rocker Switch DPST 20A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
