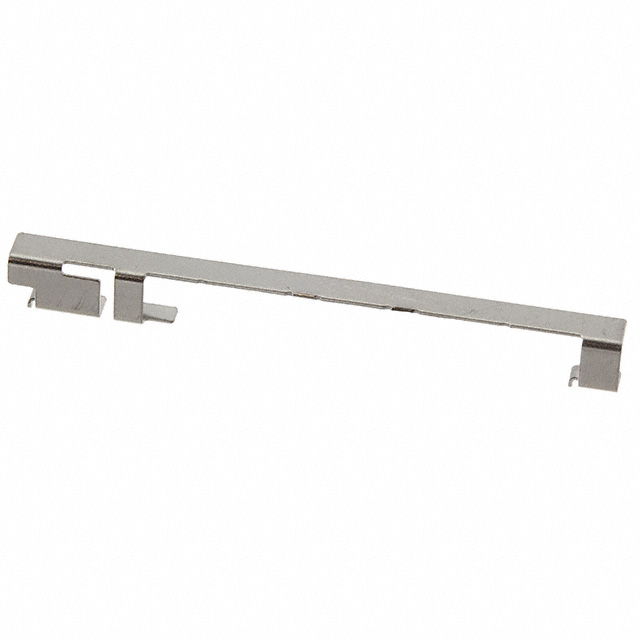

1002427

Active

Kyocera AVX

RF ANT 868MHZ/915MHZ STAMPED MET

Search across all available documentation for this part.

Active

Kyocera AVX

RF ANT 868MHZ/915MHZ STAMPED MET

Technical Specifications

Parameters and characteristics for this part

Specification	1002427

Antenna Type	Stamped Metal
Applications	LoRa, ISM, LPWAN, GPS, GLONASS, Beidou, Sigfox
Frequency (Center/Band)	915 MHz, 868 MHz, 1.575 GHz
Frequency Range	868 MHz, 915 MHz
Frequency Range [Max]	1.602 GHz
Frequency Range [Min]	1.561 GHz
Gain	3 dBi
Height (Max) [Max]	0.071 in
Height (Max) [Max]	1.8 mm
Mounting Type	Surface Mount
Number of Bands [custom]	5
Power - Max [Max]	2 W
RF Family/Standard	General ISM, Navigation
Termination	Solder
VSWR	2

Part	Power - Max [Max]	Mounting Type	VSWR	Number of Bands [custom]	Frequency Range [Min]	Frequency Range [Max]	Frequency Range	Applications	Frequency (Center/Band)	Antenna Type	Height (Max) [Max]	Height (Max) [Max]	Gain	Termination	RF Family/Standard
Kyocera AVX 1002427	2 W	Surface Mount	2	5	1.561 GHz	1.602 GHz	868 MHz 915 MHz	Beidou GLONASS GPS ISM LoRa LPWAN Sigfox	1.575 GHz 868 MHz 915 MHz	Stamped Metal	0.071 in	1.8 mm	3 dBi	Solder	General ISM Navigation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Beidou, GLONASS, GPS, ISM, LoRa, LPWAN, Sigfox Stamped Metal Solder Surface Mount
