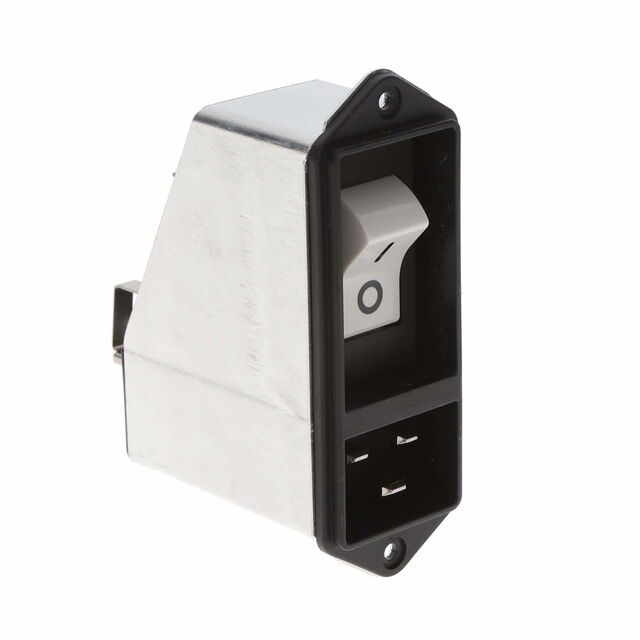

EF12.1563.2110.01

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C20 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C20 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	EF12.1563.2110.01

Accomodates a Fuse	False
Approval Agency	cURus, ENEC
Connector Style	IEC 320-C20
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Circuit Breaker	16 A
Current Rating - Filter [Max]	16 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	33.9 mm
Panel Cutout Dimensions [y]	81 mm
Switch Features	Circuit Breaker, Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Termination	Termination	Termination	Ingress Protection	Switch Features	Current Rating - Circuit Breaker	Current Rating - Filter [Max]	Features	Material Flammability Rating	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Appliance Inlet	Filter Type	Mounting Type	Connector Style	Voltage Rating - Appliance Inlet	Approval Agency	Connector Type	Accomodates a Fuse
SCHURTER Inc. EF12.1563.2110.01	0.25 in	6.3 mm	Quick Connect	IP40	Circuit Breaker Switch On-Off	16 A	16 A	Shielded	UL94 V-0	81 mm	33.9 mm	10 A	Filtered (EMI RFI) - Commercial	Flange Panel Mount	IEC 320-C20	250 VAC	cURus ENEC	Receptacle Male Blades - Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C20 Panel Mount, Flange
