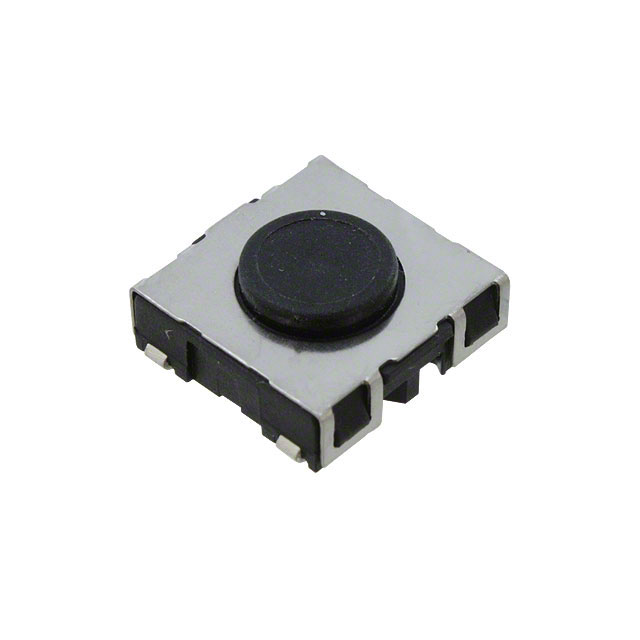

1241.1601.11

Active

SCHURTER Inc.

SWITCH TACTILE N.O. SPST ROUND BUTTON J-LEAD 0.05A 30VAC 42VDC 0.12VA >1000000CYCLES 1.8N SMD BOX

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH TACTILE N.O. SPST ROUND BUTTON J-LEAD 0.05A 30VAC 42VDC 0.12VA >1000000CYCLES 1.8N SMD BOX

Technical Specifications

Parameters and characteristics for this part

Specification	1241.1601.11

Actuator Height off PCB, Vertical [z]	4.7 mm
Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	42 VDC, 0.05 A
Features	Tactile Feedback
Illumination	Non-Illuminated
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Surface Mount
Operating Force	180 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	11.4 mm
Outline [y]	11.4 mm
Switch Function	Off-Mom
Switch Travel	0.35 mm
Termination Style	J Lead

Part	Mechanical Life	Operating Force	Actuator Material	Actuator Orientation	Ingress Protection	Actuator Height off PCB, Vertical [z]	Switch Function	Actuator Type	Features	Contact Rating @ Voltage	Illumination	Circuit	Termination Style	Outline [y]	Outline [x]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Mounting Type	Actuator Height off PCB, Vertical
SCHURTER Inc. 1241.1601.11	1000000 Cycles	180 gf	Polyphenylene Sulfide (PPS)	Top Actuated	IP40	4.7 mm	Off-Mom	Standard	Tactile Feedback	0.05 A 42 VDC	Non-Illuminated	SPST-NO	J Lead	11.4 mm	11.4 mm	85 °C	-40 °C	0.35 mm	Surface Mount
SCHURTER Inc. 1241.1606.23	1000000 Cycles	220 gf	Polyphenylene Sulfide (PPS)	Top Actuated	IP67 - Dust Tight Waterproof		Off-Mom	Standard	Tactile Feedback	0.05 A 42 VDC	Non-Illuminated	SPST-NO	Gull Wing	11.4 mm	11.4 mm	85 °C	-40 °C	0.35 mm	Surface Mount	4.95 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
