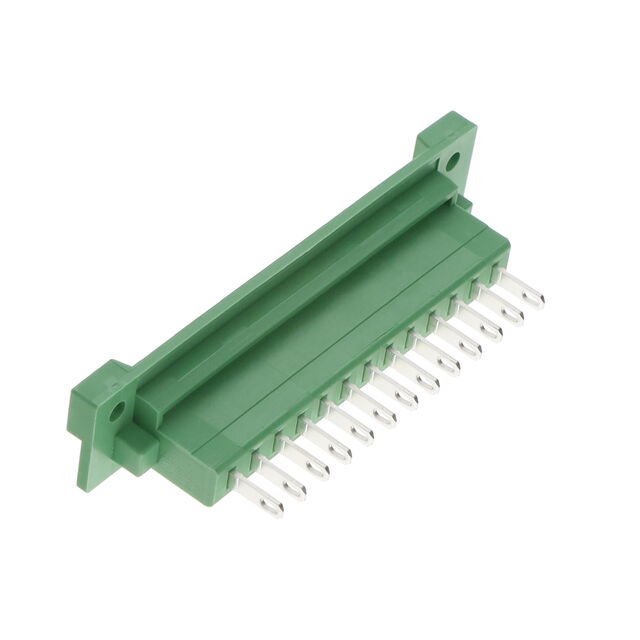

0710138

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 13 POS 5MM PITCH FEED THROUGH HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 13 POS 5MM PITCH FEED THROUGH HEADER

Technical Specifications

Parameters and characteristics for this part

Pluggable Terminal Blocks 15 Pos 5mm pitch Feed Through Header

Part	Rear Panel Wire Connection	Rear Panel Wire Connection	Rear Panel Wire Connection	Positions Per Level	Current - UL	Voltage - UL	Front Panel Wire Connection	Color	Panel Mount Type	Number of Levels	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Width [x]	Width [x]	Pitch [x]	Pitch [x]	Features	Width	Width
Phoenix Contact 0710154	0.11 in	Quick Connect Solder Eyelet	2.8 mm	15	10 A	300 V	Header Male Pins	Green	Screw Mount - Front Flange	1	0.02 "	4 mm	0.157 in	0.5 mm	3.74 in	95 mm	5 mm	0.197 in
Phoenix Contact 0707358	0.11 in	Quick Connect Solder Eyelet	2.8 mm	14		300 V	Header Male Pins	Green	Screw Mount - Front Flange	1	0.02 "	4 mm	0.157 in	0.5 mm	3.6 in	91.44 mm	5.08 mm	0.2 in	Lock Opening
Phoenix Contact 0710138	0.11 in	Quick Connect Solder Eyelet	2.8 mm	13	10 A	300 V	Header Male Pins	Green	Screw Mount - Front Flange	1	0.02 "	4 mm	0.157 in	0.5 mm			5 mm	0.197 in		3.346 in	85 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks 15 Pos 5mm pitch Feed Through Header
