SRR0604-471KL

Active

Bourns Inc.

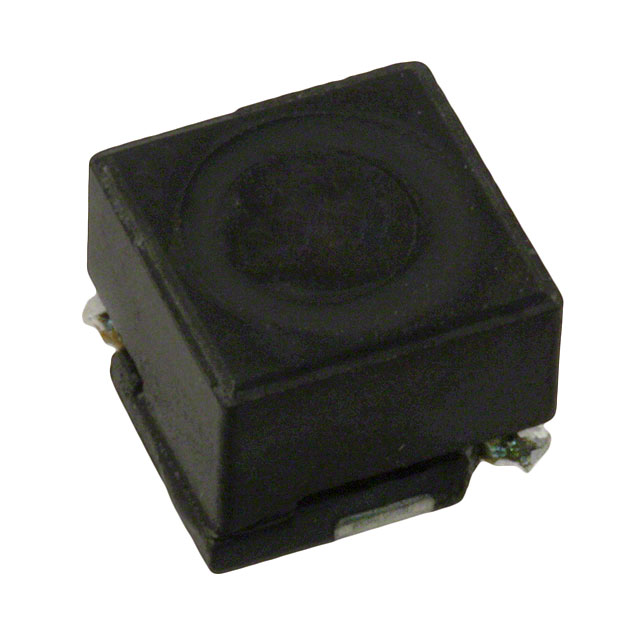

POWER INDUCTOR (SMD), 470 ΜH, 180 MA, SHIELDED, 220 MA, SRR0604 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

SRR0604-471KL

Active

Bourns Inc.

POWER INDUCTOR (SMD), 470 ΜH, 180 MA, SHIELDED, 220 MA, SRR0604 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR0604-471KL

Current - Saturation (Isat)	220 mA
Current Rating (Amps)	0.18 A
DC Resistance (DCR) [Max]	3.3 Ohm
Frequency - Self Resonant	6.5 MHz
Height - Seated (Max) [Max] [z]	0.189 "
Height - Seated (Max) [Max] [z]	4.8 mm
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Q @ Freq	796 kHz, 18
Shielding	Shielded
Size / Dimension [x]	6.5 mm
Size / Dimension [x]	0.256 "
Size / Dimension [y]	6.5 mm
Size / Dimension [y]	0.256 in
Tolerance	10 %
Type	Wirewound, Drum Core

SRR0604 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Inductance	Type	Shielding	Material - Core	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Saturation (Isat)	Current Rating (Amps)	Frequency - Self Resonant	Q @ Freq	Tolerance	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Bourns Inc. SRR0604-470YL	125 °C	-40 °C	0.189 "	4.8 mm	Surface Mount	47 µH	Drum Core Wirewound	Shielded	Ferrite	6.5 mm	0.256 in	6.5 mm	0.256 "
Bourns Inc. SRR0604-151KL	125 °C	-40 °C	0.189 "	4.8 mm	Surface Mount	150 µH	Drum Core Wirewound	Shielded	Ferrite	6.5 mm	0.256 in	6.5 mm	0.256 "	470 mA	300 mA	12 MHz	21 796 kHz	10 %	1 Ohm
Bourns Inc. SRR0604-471KL	125 °C	-40 °C	0.189 "	4.8 mm	Surface Mount		Drum Core Wirewound	Shielded	Ferrite	6.5 mm	0.256 in	6.5 mm	0.256 "	220 mA	0.18 A	6.5 MHz	18 796 kHz	10 %	3.3 Ohm
Bourns Inc. SRR0604-222KL	125 °C	-40 °C	0.189 "	4.8 mm	Surface Mount	2.2 mH	Drum Core Wirewound	Shielded	Ferrite	6.5 mm	0.256 in	6.5 mm	0.256 "	80 mA	100 mA	650 kHz	80 252 kHz	10 %	16 Ohm
Bourns Inc. SRR0604-4R7ML	125 °C	-40 °C	0.189 "	4.8 mm	Surface Mount	4.7 ÁH	Drum Core Wirewound	Shielded	Ferrite	6.5 mm	0.256 in	6.5 mm	0.256 "	2.55 A	2 A	50 MHz	7.96 MHz 10	20 %
Bourns Inc. SRR0604-2R5ML	125 °C	-40 °C	0.189 "	4.8 mm	Surface Mount	2.5 µH	Drum Core Wirewound	Shielded	Ferrite	6.5 mm	0.256 in	6.5 mm	0.256 "	3.5 A	2.5 A	100 MHz	7.96 MHz 21	20 %	35 mOhm
Bourns Inc. SRR0604-100ML	125 °C	-40 °C	0.189 "	4.8 mm	Surface Mount	10 µH	Drum Core Wirewound	Shielded	Ferrite	6.5 mm	0.256 in	6.5 mm	0.256 "	1.8 A	1.3 A	30 MHz	2.52 MHz 18	20 %		120 mOhm
