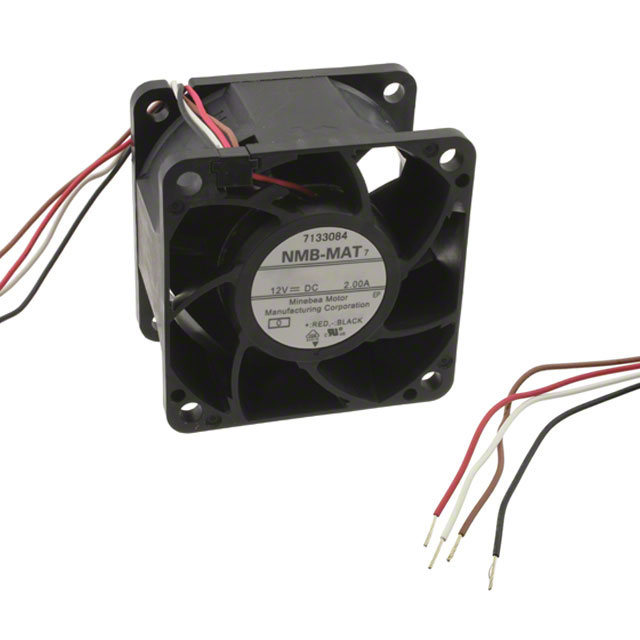

06038DA-12S-EUD-0

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 60X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsFan Part Numbering Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	06038DA-12S-EUD-0

Air Flow	1.86 m³/min
Air Flow	66.4 CFM
Approval Agency	VDE, UR
Bearing Type	Ball
Current Rating (Amps)	1.65 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	63.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	19.8 W
RPM	17000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	3.713 in H2O
Static Pressure	925 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.271 lb
Weight	122.92 g
Width [y]	38 mm

06038DA Series

Part	Noise	Material - Blade	Features	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Termination	Width [y]	Power (Watts)	Bearing Type	Size / Dimension [x]	Size / Dimension [y]	Lifetime @ Temp.	Material - Frame	Fan Type	Voltage - Rated	Air Flow	Air Flow	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Approval Agency	Weight	Weight
NMB TECHNOLOGIES 06038DA-12Q-ETD-0	58 dB(A)	Plastic	Auto Restart Speed Sensor (Tach)	780 mA	13.2 VDC	10.8 VDC	3 Wire Leads	38 mm	9.4 W	Ball	60 mm	60 mm	70000 Hrs	Plastic	Tubeaxial	12 VDC	1.41 mł/min	50.2 CFM	2.31 in H2O	575 Pa	70 °C	70 °C	-10 °C	-10 °C	13000 RPM
NMB TECHNOLOGIES 06038DA-12Q-EAD-0	58 dB(A)	Plastic		780 mA	13.2 VDC	10.8 VDC	2 Wire Leads	38 mm	9.4 W	Ball	60 mm	60 mm	70000 Hrs	Plastic	Tubeaxial	12 VDC	1.41 mł/min	50.5 CFM	2.31 in H2O	575 Pa	70 °C	70 °C	-10 °C	-10 °C	13000 RPM	UR VDE	0.271 lb	122.92 g
NMB TECHNOLOGIES 06038DA-12S-ECF-0		Plastic	Auto Restart				2 Wire Leads	38 mm		Ball	60 mm	60 mm	70000 Hrs	Plastic	Tubeaxial	12 VDC					70 °C	70 °C	-10 °C	-10 °C
NMB TECHNOLOGIES 06038DA-12S-EAD-0	63.5 dB(A)	Plastic		1.65 A	13.2 VDC	10.8 VDC	2 Wire Leads	38 mm	19.8 W	Ball	60 mm	60 mm	70000 Hrs	Plastic	Tubeaxial	12 VDC	1.86 m³/min	66.4 CFM	3.713 in H2O	925 Pa	70 °C	70 °C	-10 °C	-10 °C	17000 RPM	UR VDE	0.271 lb	122.92 g
NMB TECHNOLOGIES 06038DA-12S-ETD-0	63.5 dB(A)	Plastic	Auto Restart Speed Sensor (Tach)	1.65 A	13.2 VDC	10.8 VDC	3 Wire Leads	38 mm	19.8 W	Ball	60 mm	60 mm	70000 Hrs	Plastic	Tubeaxial	12 VDC	1.86 m³/min	66.4 CFM	3.71 in H2O	924.1 Pa	70 °C	70 °C	-10 °C	-10 °C	17000 RPM
NMB TECHNOLOGIES 06038DA-12S-EUD-0	63.5 dB(A)	Plastic	PWM Control Speed Sensor (Tach)	1.65 A	13.2 VDC	10.8 VDC	4 Wire Leads	38 mm	19.8 W	Ball	60 mm	60 mm	70000 Hrs	Plastic	Tubeaxial	12 VDC	1.86 m³/min	66.4 CFM	3.713 in H2O	925 Pa	70 °C	70 °C	-10 °C	-10 °C	17000 RPM	UR VDE	0.271 lb	122.92 g
NMB TECHNOLOGIES 06038DA-12S-EWF-D	66.5 dB(A)	Plastic	Auto Restart PWM Control Speed Sensor (Tach)	2.3 A	13.2 VDC	10.8 VDC	4 Wire Leads	38 mm	27.6 W	Ball	60 mm	60 mm	70000 Hrs	Plastic	Tubeaxial	12 VDC	2.05 m³/min	73.1 CFM	3.56 in H2O	886.7 Pa	60 °C	60 °C	-10 °C	-10 °C	17000 RPM	cULus VDE
NMB TECHNOLOGIES 06038DA-12R-EAD-0	61.5 dB(A)	Plastic		1.16 A	13.2 VDC	10.8 VDC	2 Wire Leads	38 mm	14 Watts	Ball	60 mm	60 mm	70000 Hrs	Plastic	Tubeaxial	12 VDC	1.64 m³/min	58.6 CFM	2.97 in H2O	740 Pa	70 °C	70 °C	-10 °C	-10 °C	15000 RPM	UR VDE	0.271 lb	122.92 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

06038DA Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 66.4 CFM (1.86m³/min) 4 Wire Leads
