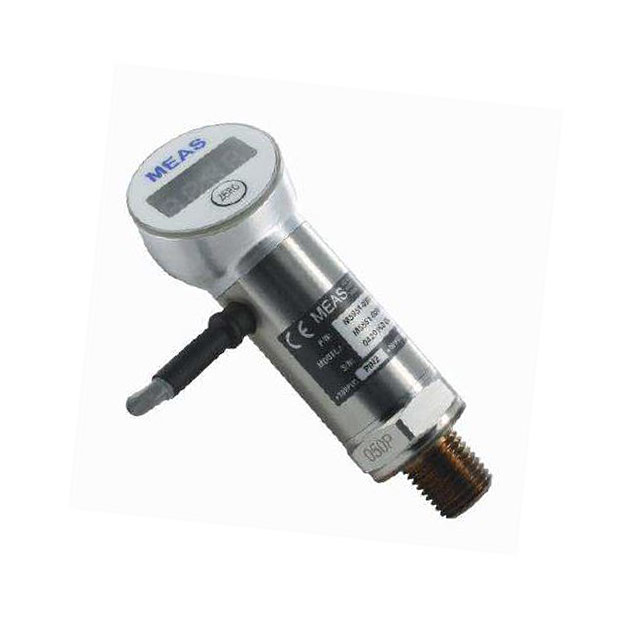

M5852-000005-500PG
ObsoleteTE Connectivity Measurement Specialties
PRESSURE SENSOR 500PSI GAUGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M5852-000005-500PG
ObsoleteTE Connectivity Measurement Specialties
PRESSURE SENSOR 500PSI GAUGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M5852-000005-500PG |
|---|---|
| Accuracy | 0.25 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Operating Pressure | 3447.38 kPa |
| Operating Pressure | 500 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 20 mA |
| Output [Min] | 4 mA |
| Output Type | Analog Current |
| Package / Case | Cylinder, Metal |
| Port Size [custom] | NPT |
| Port Size [custom] | Male |
| Port Size [x] | 0.25 " |
| Port Size [x] | 6.35 mm |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | Cable 4' |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M5852 Series
PRESSURE SENSOR 500PSI GAUGE
