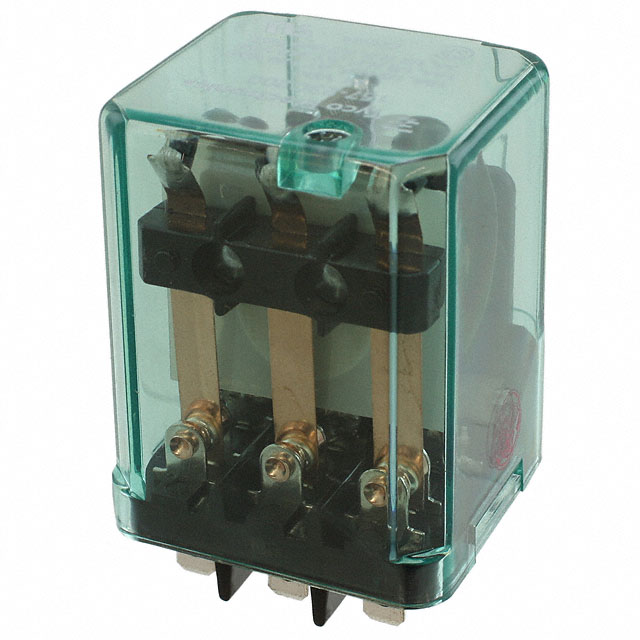

15723C200
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 3PDT 10A 24V
Deep-Dive with AI
Search across all available documentation for this part.
15723C200
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 3PDT 10A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 15723C200 |
|---|---|
| Approval Agency | CSA, UR |
| Coil Current | 51.1 mA |
| Coil Resistance | 470 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | 3PDT (3 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 2400 VA, 280 W |
| Mounting Type | Socketable |
| Must Operate Voltage | 18 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 28 VDC, 240 VAC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 23.13 | |
| 10 | $ 20.21 | |||
| 25 | $ 19.15 | |||
| 40 | $ 18.63 | |||
| 80 | $ 17.89 | |||
| 230 | $ 16.81 | |||
| 440 | $ 16.18 | |||
Description
General part information
15723C Series
General Purpose Relay 3PDT (3 Form C) 24VDC Coil Socketable
