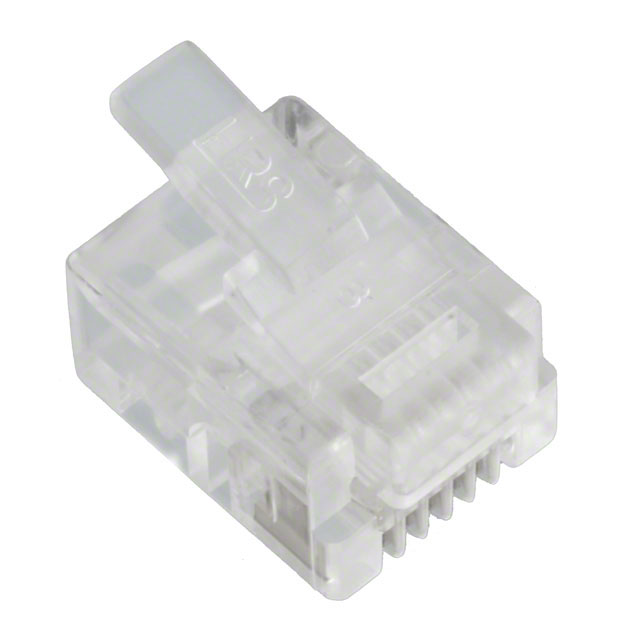

TM4P-66P

Active

Hirose Electric USA, Inc.

CONN MOD PLUG 6P6C UNSHIELDED

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN MOD PLUG 6P6C UNSHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	TM4P-66P

Cable Type	Round Cable, Stranded Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Housing Material	Polycarbonate (PC)
Length	13.4 mm
Length [x]	0.528 in
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Shielding	Unshielded
Termination	IDC
Voltage Rating	125 VDC
Wire Gauge	26 AWG

Part	Color	Cable Type	Contact Finish	Housing Material	Connector Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Termination	Shielding	Voltage Rating	Length [x]	Length	Wire Gauge	Number of Positions/Contacts	Contact Material	Current Rating (Amps)
Hirose Electric USA, Inc. TM4P-1212P	Translucent - Clear	Flat Oval Cable Stranded Wires	Gold	Polycarbonate (PC)	Plug	12	12	IDC
Hirose Electric USA, Inc. TM4P-44P	Translucent - Clear	Round Cable Stranded Wires	Gold	Polycarbonate (PC)	Plug			IDC	Unshielded	125 VDC	0.528 in	13.4 mm	26 AWG	4p4c	Phosphor Bronze	0.5 A
Hirose Electric USA, Inc. TM4P-66P	Translucent - Clear	Round Cable Stranded Wires	Gold	Polycarbonate (PC)	Plug			IDC	Unshielded	125 VDC	0.528 in	13.4 mm	26 AWG	6p6c (RJ11 RJ12 RJ14 RJ25)	Phosphor Bronze	0.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Position Unshielded IDC

Technical documentation and resources
