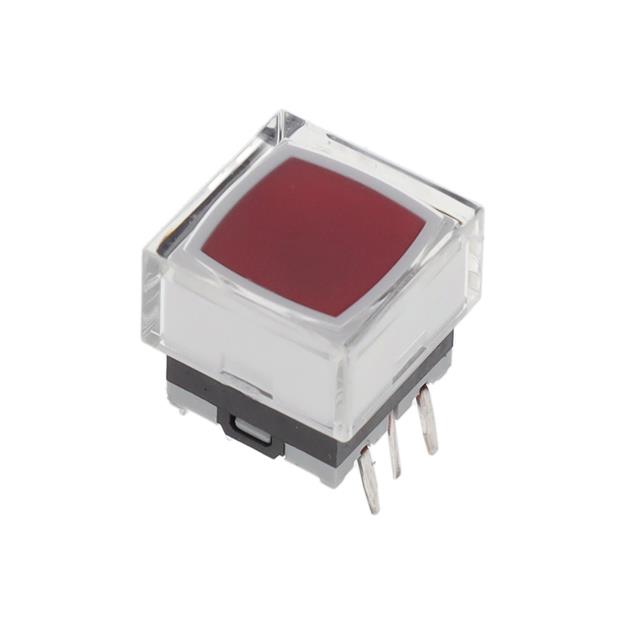

JB15HLPC-JC

Active

NKK Switches

ILLUMINATED LOW PROFILE PROCESS SEALED TACTILE

Search across all available documentation for this part.

Active

NKK Switches

ILLUMINATED LOW PROFILE PROCESS SEALED TACTILE

Technical Specifications

Parameters and characteristics for this part

Specification	JB15HLPC-JC

Actuator Height off PCB, Vertical [z]	11.2 mm
Actuator Material	Polyacetal
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.125 A, 24 VDC
Features	Process Sealed
Illumination	Illuminated
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.8 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	265 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	10 mm
Outline [y]	10 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

Part	Ingress Protection	Illumination	Circuit	Mounting Type	Actuator Height off PCB, Vertical [z]	Features	Actuator Type	Operating Force	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Switch Travel [custom]	Mechanical Life	Termination Style	Switch Function	Contact Rating @ Voltage	Outline [y]	Outline [x]	Illumination Voltage (Nominal)	Actuator Orientation
NKK Switches JB15HLPC-JC	IP67 - Dust Tight Waterproof	Illuminated	SPST-NO	Through Hole	11.2 mm	Process Sealed	Square Button	265 gf	Polyacetal	70 °C	-25 °C	LED Red	0.3 mm	1000000 Cycles	PC Pin	Off-Mom	0.125 A 24 VDC	10 mm	10 mm	1.8 VDC	Top Actuated
NKK Switches JB15HLPC-JB	IP67 - Dust Tight Waterproof	Illuminated	SPST-NO	Through Hole	11.2 mm	Process Sealed	Square Button	265 gf	Polyacetal	70 °C	-25 °C	LED Red	0.3 mm	1000000 Cycles	PC Pin	Off-Mom	0.125 A 24 VDC	10 mm	10 mm	1.8 VDC	Top Actuated
NKK Switches JB15HLPC-BH	IP67 - Dust Tight Waterproof	Illuminated	SPST-NO	Through Hole	11.2 mm	Process Sealed	Square Button	265 gf	Polyacetal	70 °C	-25 °C	LED Red	0.3 mm	1000000 Cycles	PC Pin	Off-Mom	0.125 A 24 VDC	10 mm	10 mm	1.8 VDC	Top Actuated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
