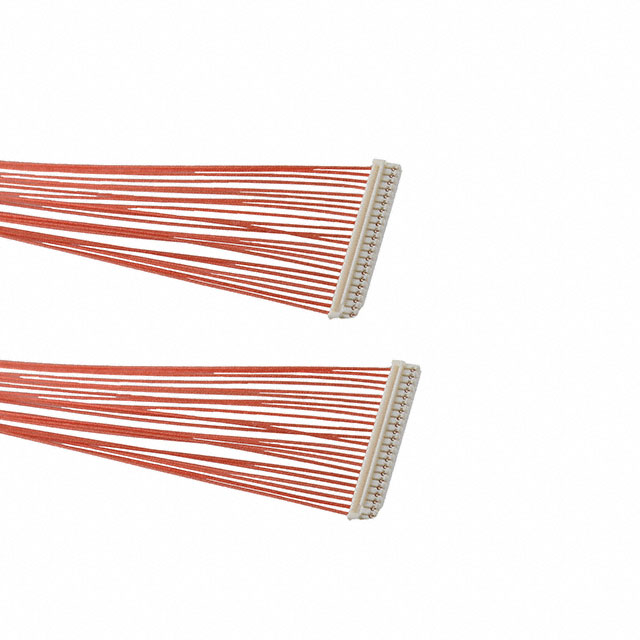

A22XSR22XSR36R102B
ActiveJST Sales America Inc.
JUMPER 22XSR-36S - 22XSR-36S 4"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A22XSR22XSR36R102B
ActiveJST Sales America Inc.
JUMPER 22XSR-36S - 22XSR-36S 4"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A22XSR22XSR36R102B |
|---|---|
| Cable Termination | IDC |
| Color | Individual, Red |
| Connector Type | Socket to Socket |
| Contact Finish | Tin |
| Length [x] | 4 " |
| Length [x] | 0.333 ft |
| Length [x] | 101.6 mm |
| Number of Positions | 22 positions |
| Number of Rows | 1 |
| Pitch - Connector | 0.024 " |
| Pitch - Connector | 0.6 mm |
A22XSR22 Series
| Part | Pitch - Connector | Pitch - Connector | Number of Rows | Contact Finish | Number of Positions | Connector Type | Color | Length [x] | Length [x] | Length [x] | Cable Termination | Length | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | 0.024 " | 0.6 mm | 1 | Tin | 22 positions | Socket to Socket Reversed | Individual Red | 11.61 " | 0.968 ' | 295 mm | IDC | ||||
JST Sales America Inc. | 0.024 " | 0.6 mm | 1 | Tin | 22 positions | Socket to Socket Reversed | Individual Red | 4 " | 0.333 ft | 101.6 mm | IDC | ||||
JST Sales America Inc. | 0.024 " | 0.6 mm | 1 | Tin | 22 positions | Socket to Socket Reversed | Individual Red | IDC | 10 in | 0.833 ft | 254 mm | ||||
JST Sales America Inc. | 0.024 " | 0.6 mm | 1 | Tin | 22 positions | Socket to Socket | Individual Red | 11.61 " | 0.968 ' | 295 mm | IDC | ||||
JST Sales America Inc. | 0.024 " | 0.6 mm | 1 | Tin | 22 positions | Socket to Socket | Individual Red | IDC | 2 " | 0.167 ' | 50.8 mm | ||||
JST Sales America Inc. | 0.024 " | 0.6 mm | 1 | Tin | 22 positions | Socket to Socket | Individual Red | 4 " | 0.333 ft | 101.6 mm | IDC | ||||
JST Sales America Inc. | 0.024 " | 0.6 mm | 1 | Tin | 22 positions | Socket to Socket | Individual Red | IDC | 8 in | 0.667 ft | 203.2 mm | ||||
JST Sales America Inc. | 0.024 " | 0.6 mm | 1 | Tin | 22 positions | Socket to Socket | Individual Red | IDC | 6 " | 152.4 mm | 0.5 ' | ||||
JST Sales America Inc. | 0.024 " | 0.6 mm | 1 | Tin | 22 positions | Socket to Socket Reversed | Individual Red | IDC | 8 in | 0.667 ft | 203.2 mm | ||||
JST Sales America Inc. | 0.024 " | 0.6 mm | 1 | Tin | 22 positions | Socket to Socket Reversed | Individual Red | IDC | 2 " | 0.167 ' | 50.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.37 | |
| 10 | $ 7.54 | |||
| 25 | $ 7.10 | |||
| 50 | $ 6.92 | |||
| 100 | $ 6.73 | |||
| 250 | $ 6.01 | |||
| 500 | $ 5.64 | |||
Description
General part information
A22XSR22 Series
22 Position Cable Assembly Rectangular Socket to Socket 0.333' (101.60mm, 4.00")
