3274184

Active

Phoenix Contact

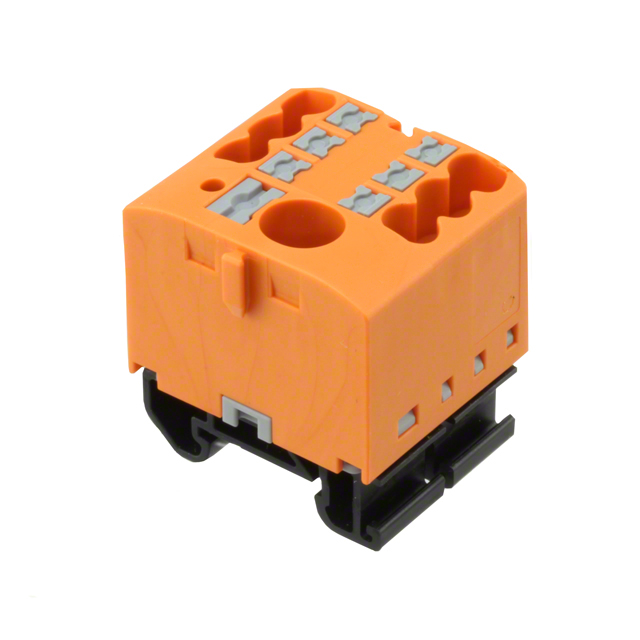

DIN RAIL TERMINAL BLOCKS PTFIX6/6X2,5-NS15AOG 2.5MM2 W/6MM2 FEEDI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

3274184

Active

Phoenix Contact

DIN RAIL TERMINAL BLOCKS PTFIX6/6X2,5-NS15AOG 2.5MM2 W/6MM2 FEEDI

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3274184

Current - IEC	24 A
Features	Block of 3
Height (Max)	33 mm
Height (Max) [Max]	1.299 in
Housing Color	Orange
Length [x]	1.11 in
Length [x]	28.19 mm
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	DIN Rail
Number of Levels	1
Number of Positions	7
Stripping Length [x]	12 mm
Terminal - Width [y]	25.2 mm
Termination Style	Push In, Spring
Type	Middle
Voltage - IEC	500 V

PTFIX Series

DIN Rail Terminal Blocks PTFIX 18X1,5-NS15AVT 1.5 mm2 DIN RAIL MN

Part	Voltage - IEC	Stripping Length	Material Flammability Rating	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - UL	Housing Color	Termination Style	Terminal - Width [y]	Features	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Number of Levels	Current - IEC	Type	Length [x]	Length [x]	Material - Insulation	Mounting Type	Height (Max)	Height (Max) [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - UL	Height (Max) [Max]	Length	Length	Height (Max) [Max] [z]	Stripping Length [Min]	Stripping Length [Max]	Terminal - Width	Stripping Length [x]
Phoenix Contact 3002878	450 V	10 mm	UL94 V-0	0.14 mm²	1.5 mm²	300 V	Red	Push In Spring	24.9 mm	Block of 6	12	130 °C	-60 °C	1	17.5 A	Middle	0.85 in	21.6 mm	Nylon Polyamide (PA)	Direct Mount	18.7 mm	0.736 in	26 AWG	14 AWG
Phoenix Contact 3273018	500 V	10 mm	UL94 V-0	0.14 mm²	4 mm²		Orange	Push In Spring	28.6 mm	Block of 3	6			1	24 A	Middle			Nylon Polyamide (PA)	DIN Rail		1.559 in	26 AWG	12 AWG	5 A	39.6 mm	2.287 in	58.1 mm
Phoenix Contact 3002941	450 V	10 mm	UL94 V-0	0.14 mm²	1.5 mm²	300 V	White	Push In Spring	24.9 mm	Block of 6	12	130 °C	-60 °C	1	17.5 A	Middle	0.85 in	21.6 mm	Nylon Polyamide (PA)	DIN Rail	27.4 mm		26 AWG	14 AWG					1.079 in
Phoenix Contact 3273697	800 V		UL94 V-0	0.2 mm²	6 mm²		Pink	Push In Spring		Block of 6	12	130 °C	-60 °C	1	32 A	Middle	1.799 "	45.7 mm	Nylon Polyamide (PA)	DIN Rail		1.217 in	24 AWG	10 AWG	32 A	30.9 mm				10 mm	12 mm	36.9 mm
Phoenix Contact 3002904	450 V	10 mm	UL94 V-0	0.14 mm²	1.5 mm²	300 V	Orange	Push In Spring	24.9 mm	Block of 6	12	130 °C	-60 °C	1	17.5 A	Middle	0.85 in	21.6 mm	Nylon Polyamide (PA)	Direct Mount	18.7 mm	0.736 in	26 AWG	14 AWG
Phoenix Contact 3274108	500 V	10 mm	UL94 V-0	0.14 mm²	4 mm²		Green	Push In Spring	15.6 mm	Block of 3	6			1	24 A	Middle	1.11 in	28.19 mm	Nylon Polyamide (PA)	DIN Rail	33 mm	1.299 in	26 AWG	14 AWG
Phoenix Contact 3002975	450 V	10 mm	UL94 V-0	0.14 mm²	1.5 mm²	300 V	Violet	Push In Spring	37.4 mm	Block of 3	18	130 °C	-60 °C	1	17.5 A	Middle	0.85 in	21.6 mm	Nylon Polyamide (PA)	DIN Rail	27.4 mm		26 AWG	14 AWG					1.079 in
Phoenix Contact 3274184	500 V		UL94 V-0				Orange	Push In Spring	25.2 mm	Block of 3	7			1	24 A	Middle	1.11 in	28.19 mm	Nylon Polyamide (PA)	DIN Rail	33 mm	1.299 in											12 mm
Phoenix Contact 3273672	800 V		UL94 V-0	0.2 mm²	6 mm²		Black	Push In Spring	18.5 mm	Block of 3	6	130 °C	-60 °C	1	32 A	Middle	1.799 "	45.7 mm	Nylon Polyamide (PA)	DIN Rail		1.217 in	24 AWG	10 AWG	32 A	30.9 mm				10 mm	12 mm
